Item Name

X2P C3P COMBO SALE

Item #

X2P C3P COMBO

Price/ea

$2,100.00

X2P C3P COMBO SALE

(This is a COMBO product includes a SIEG C3P Lathe and a SIEG X2P Mill)

Please read features and specifications below:

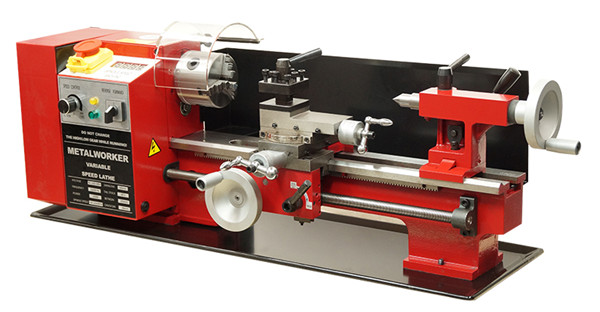

SIEG C3P Lathe

Features:

Cam-lock Tailstock

Aluminium Handwheel

4 Way Tool Post

Digital Spindle Speed Readout

Variable Speed

Switched Chuck Guard

High / Low Gear

Forward / Reverse Auto Feed

Overload Protection

Emergency Stop Button

High Quality Cast Iron Bed

Specification:

Swing Over Bed: 180mm

Distance Between Centres: 350mm

Spindle Bore: 20mm

Spindle Taper: MT3

Tailstock Taper: MT2

Cross Slide Travel: 65mm

Compound Slide Travel: 55mm

Power Rating: 550W

Output: 350W

Metric Range of Threads: 0.4-2.0mm ( 10 Thread Pitches )

Spindle Speed - High Gear: 100-3000rpm

- Low Gear: 100-1200rpm

Overal Dimension: 700x300x300mm

Weight ( Net / Gross ): 45 / 51kg

Standard Accessories:

80mm 3-Jaw Self-Centering Chuck

MT2 Dead Centre

Metric Change Gear Set

Oil Tray

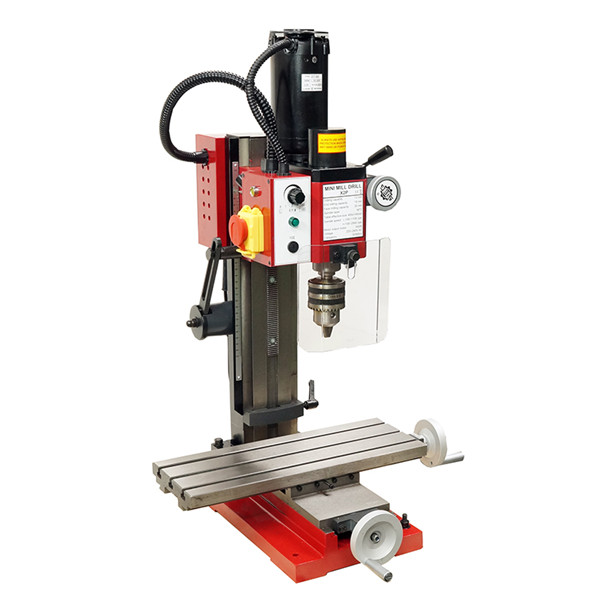

SIEG X2P Mill with MT3 Spindle

The SIEG X2P is an upgraded version of the already practical X2L mill. Features a directly base mounted bigger section fixed column for extra rigidity. Useful 400x145mm extra wide worktable for improved useability. Finish with aluminium handwheel.

Feature:

Heavy Duty Cast Iron Base

Fine Feed

Aluminium Handwheel

400x145mm Extra Wide Worktable

Extra Rigid, Bigger Section Fixed Column Mounted Directly to the Base!!

Specifications:

Drilling Capacity: 16mm

End Mill Capacity: 20mm

Face Mill Capacity: 35mm

Table Travel: 300x140mm ( X, Y )

Head Stock Travel: 260mm

Spindle Taper: MT3

Throat: 167mm

Max. Spindle to Table: 15-285mm

Table Size: 400x145mm

Table Effective Size: 400x145mm

T-Slot Size: 8mm

Power Rating: 550W

Output: 350W

Spindle Speed: 100-1100rpm (Low Gear)

100-2500rpm (High Gear)

Overall Dimension: 520x580x760mm

Weight （ Net/Gross ): 58 / 75kg

In Stock!

Quantity
