Item Details

Item Name

SIEG X2P Mill with MT3 Spindle

Item #

080-020-20010

Price/ea

$1,049.99

Product Image Gallery

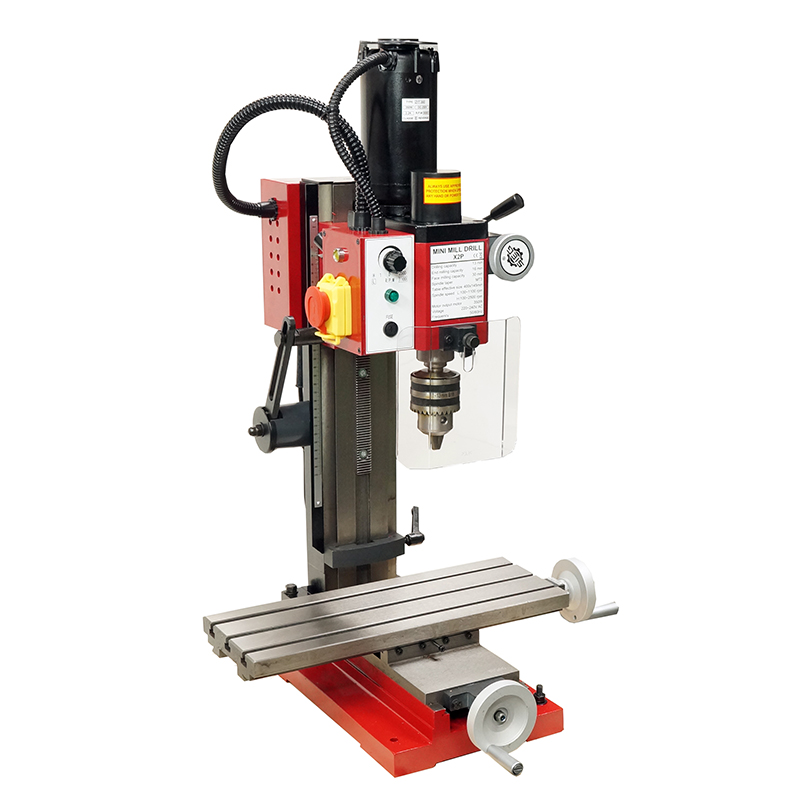

SIEG X2P Mill with MT3 Spindle

The SIEG X2P is an upgraded version of the already practical X2L mill. Features a directly base mounted bigger section fixed column for extra rigidity. Useful 400x145mm extra wide worktable for improved useability. Finish with aluminium handwheel.

Feature:

Heavy Duty Cast Iron Base

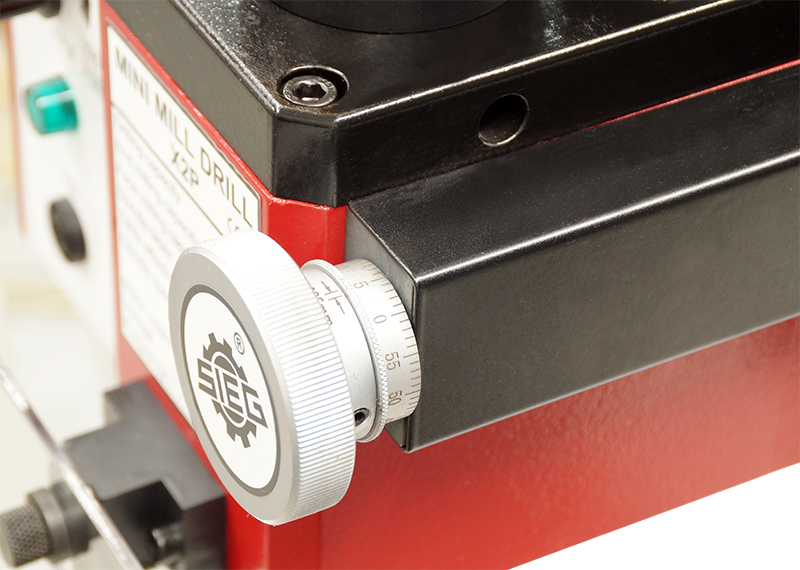

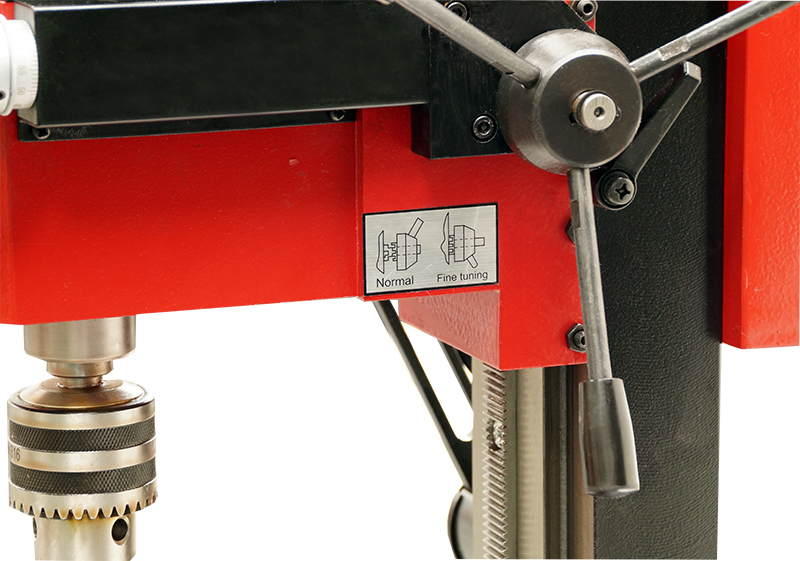

Fine Feed

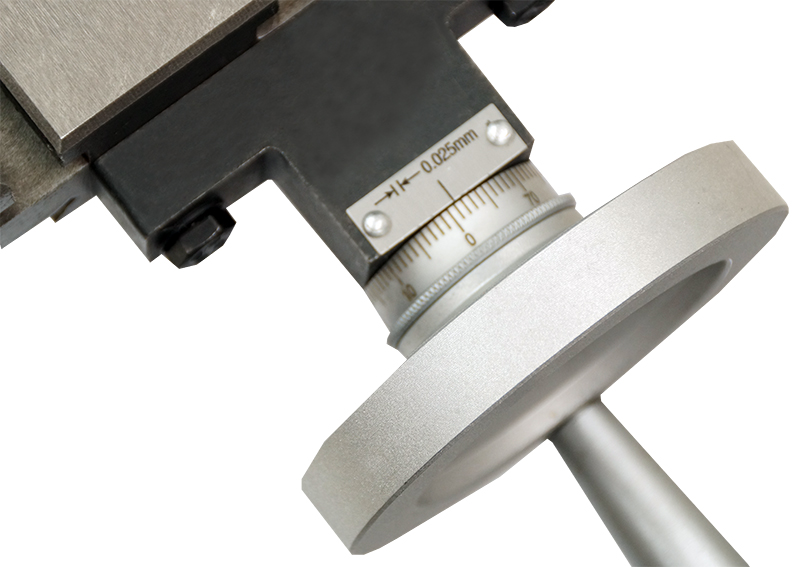

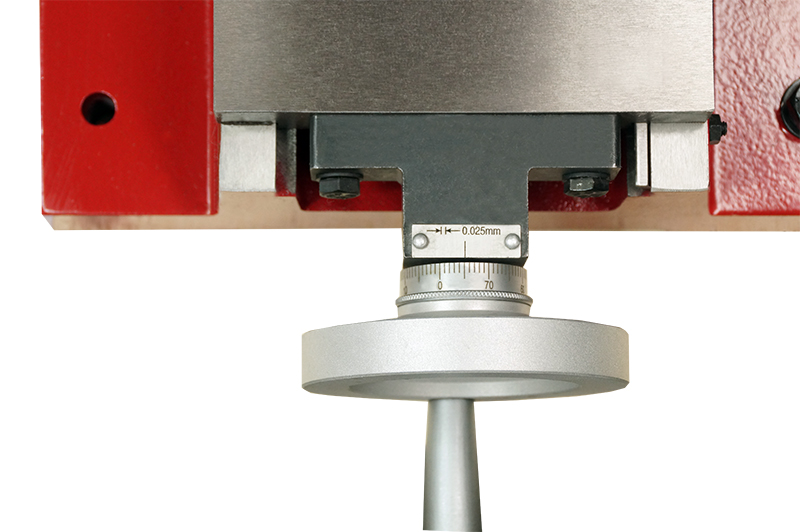

Aluminium Handwheel

400x145mm Extra Wide Worktable

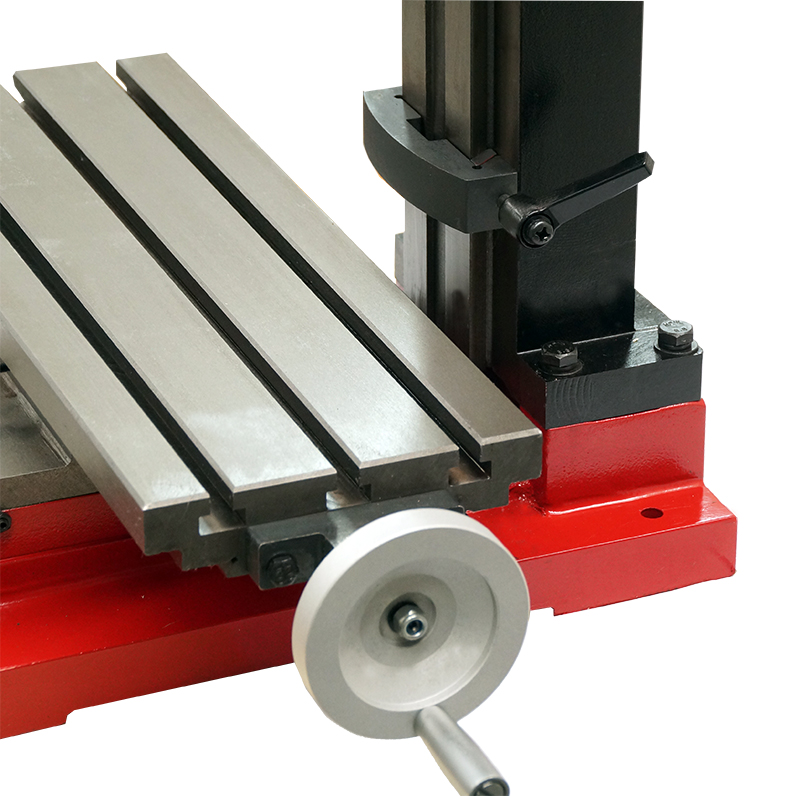

Extra Rigid, Bigger Section Fixed Column Mounted Directly to the Base!!

Specifications:

Drilling Capacity: 16mm

End Mill Capacity: 20mm

Face Mill Capacity: 35mm

Table Travel: 300x140mm ( X, Y )

Head Stock Travel: 260mm

Spindle Taper: MT3

Throat: 167mm

Max. Spindle to Table: 15-285mm

Table Size: 400x145mm

Table Effective Size: 400x145mm

T-Slot Size: 8mm

Power Rating: 550W

Output: 350W

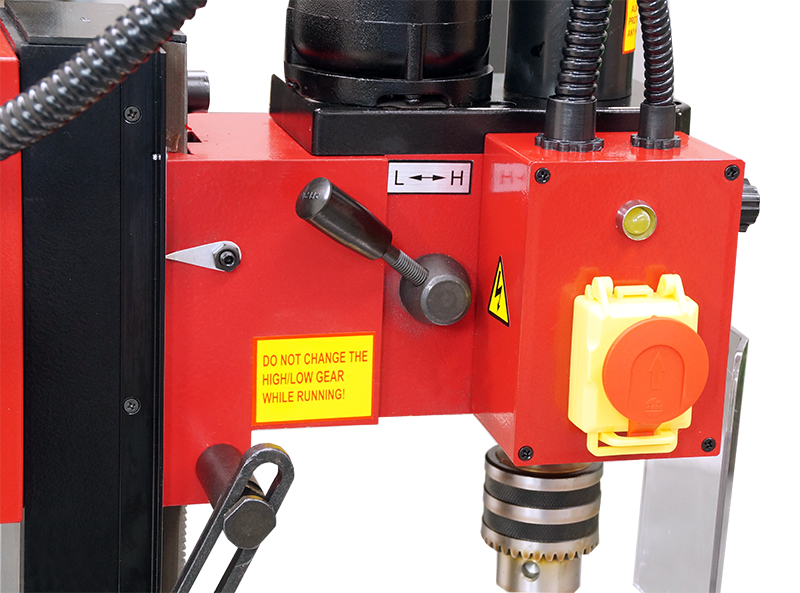

Spindle Speed: 100-1100rpm (Low Gear)

100-2500rpm (High Gear)

Overall Dimension: 520x580x760mm

Weight （ Net/Gross ): 58 / 75kg

In Stock!

Quantity
