 SIEG C3P Mini Lathe
Item Details

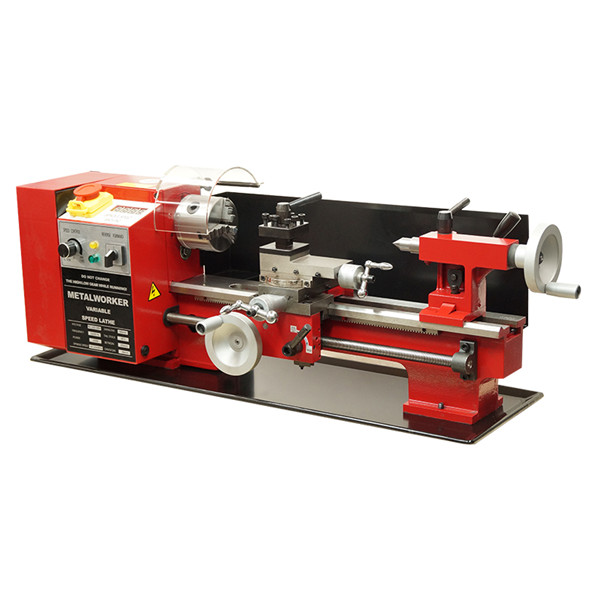

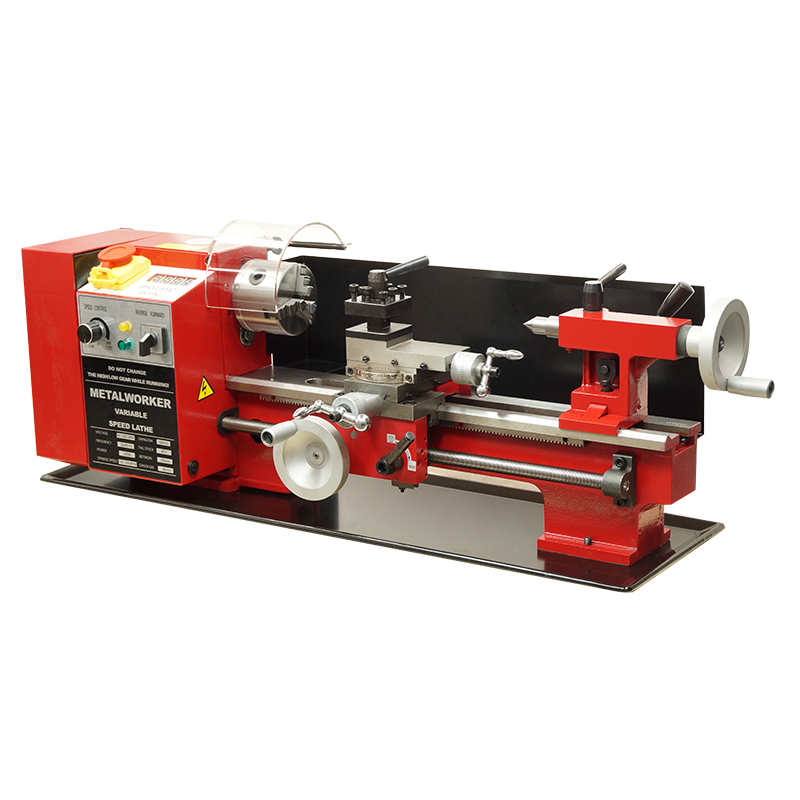

SIEG C3P Mini Lathe
Item Name
SIEG C3P Mini Lathe
Item #
080-010-30005
Price/ea
$1,049.99  $999.00

Product Image Gallery
SIEG C3P Mini Lathe

SIEG C3P Lathe


Features:
Cam-lock Tailstock
Aluminium Handwheel
4 Way Tool Post

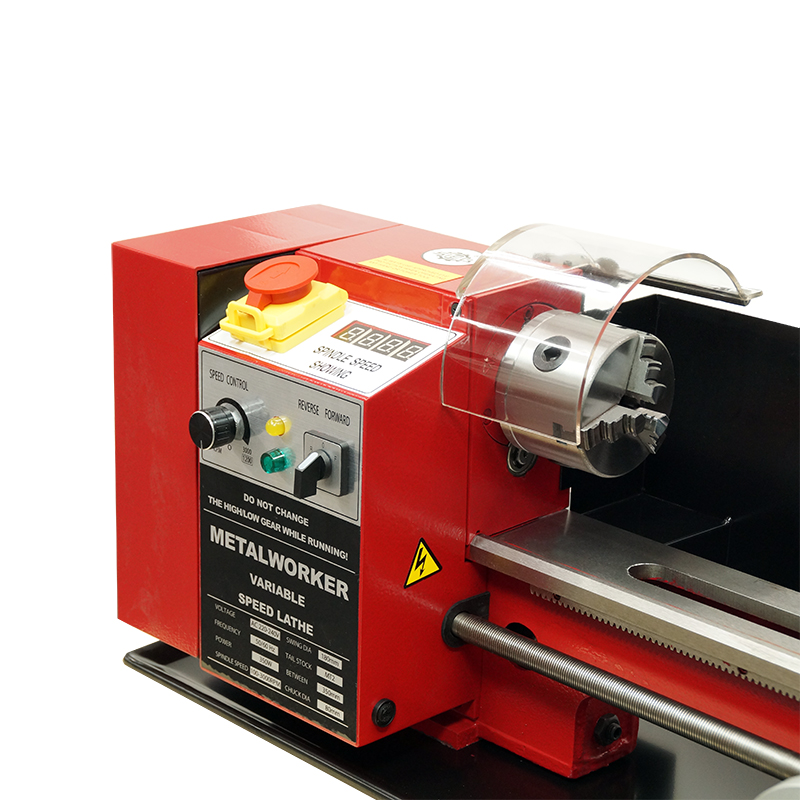

Digital Spindle Speed Readout
Variable Speed
Switched Chuck Guard
High / Low Gear
Forward / Reverse Auto Feed
Overload Protection
Emergency Stop Button
High Quality Cast Iron Bed

Specification:
Swing Over Bed: 180mm
Distance Between Centres: 350mm
Spindle Bore: 20mm
Spindle Taper: MT3
Tailstock Taper: MT2
Cross Slide Travel: 65mm
Compound Slide Travel: 55mm
Power Rating: 550W
Output: 350W
Metric Range of Threads: 0.4-2.0mm ( 10 Thread Pitches )
Spindle Speed - High Gear: 100-3000rpm
                       - Low Gear: 100-1200rpm
Overal Dimension: 700x300x300mm
Weight ( Net / Gross ): 45 / 51kg

Standard Accessories:

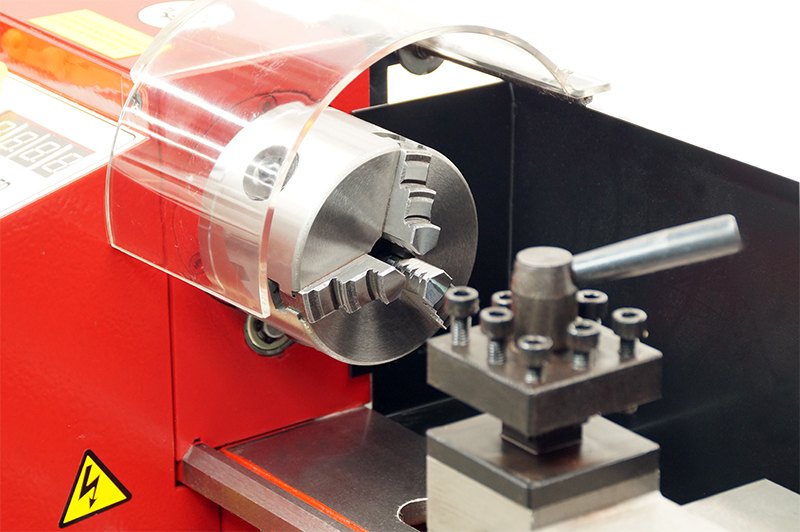

80mm 3-Jaw Self-Centering Chuck
MT2 Dead Centre
Metric Change Gear Set
Oil Tray
In Stock!
Quantity


 Ausee Machine & Tools is an Australian registered machine tool dealer located in Crabourne West, Victoria. We are not only an official distributor of SIEG machinery but also keep a wide range of cutting tools, measuring tools and machine accessories.
