Item Details

Item Name

SIEG PREMIUM SX20LF HiTorque Mill - R8

Item #

080-020-28801

Price/ea

$2,695.00

Product Image Gallery

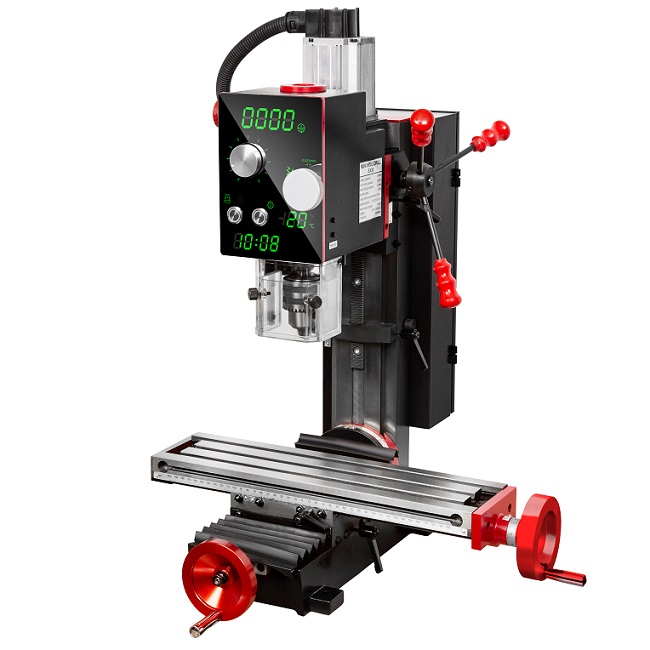

SIEG PREMIUM SX20LF HiTorque Mill

Feature:

Luxurious mirror panel featuring a digital clock and thermometer, providing you with both convenience and sophistication..
Angular contact spindle bearing for optimal stability and precision.
Digital spindle speed display.
3-axis DRO
USB power supply x 2
Gas strut counterweights ensure smooth head movement.
High torque brushless motor for exceptional power and efficiency, built to handle even the toughest turning projects.
Bigger section column mounted directly to the base for extra rigidity.

Specifications:

Drilling Capacity: 16mm

End Mill Capacity: 20mm

Face Mill Capacity: 35mm

Table Travel: 300x130mm ( X, Y )

Head Stock Travel: 250mm

Spindle Taper: R8

Thoat: 167mm

Max. Spindle to Table: 15-285mm

Table Size: 460x120mm

T-Slot Size: 12mm

Power Rating: 610W

Output: 500W

Spindle Speed: 0-2500rpm

Overall Dimension: 520x580x760mm

Weight （ Net/Gross ): 58 / 75kg

(The power feed shown in the photo is an optional accessory.)

Standard Accessories:

Android Pad for 3-axis DRO

Drill Chuck with Arbor

Drawbar

Wrench Set

In Stock!

Quantity
