Item Details

Item Name

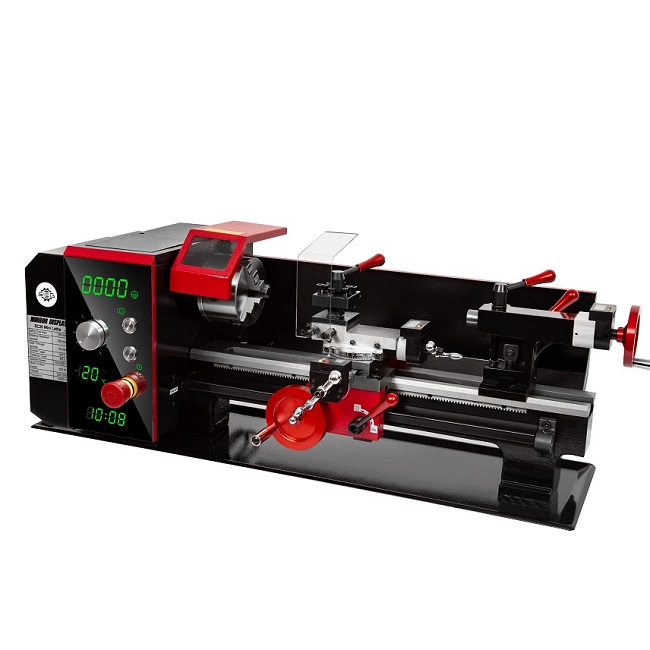

SIEG PREMIUM SC20 HiTorque Lathe

Item #

080-010-28800

Price/ea

$1,958.00

Product Image Gallery

SIEG PREMIUM SC20 HiTorque Lathe

Feature:

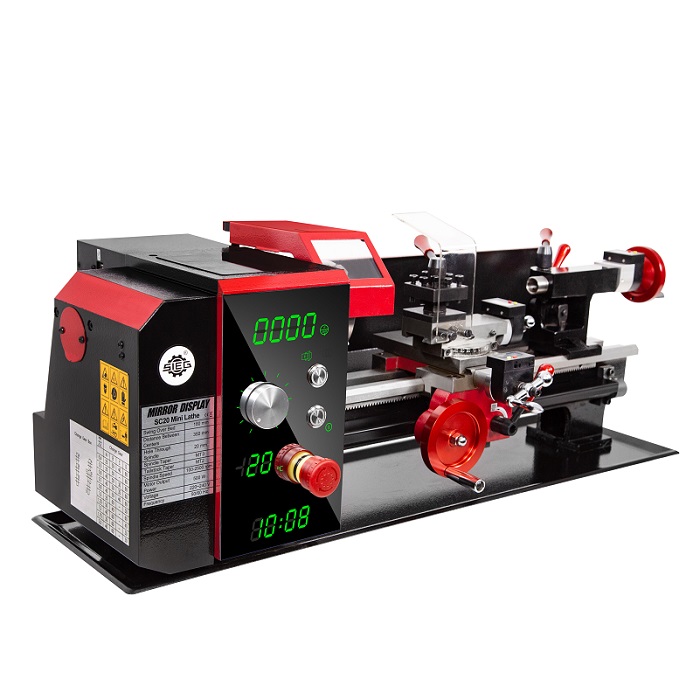

Luxurious mirror panel featuring a digital clock and thermometer, providing you with both convenience and sophistication..
Angular contact spindle bearing for optimal stability and precision.
Digital spindle speed display.

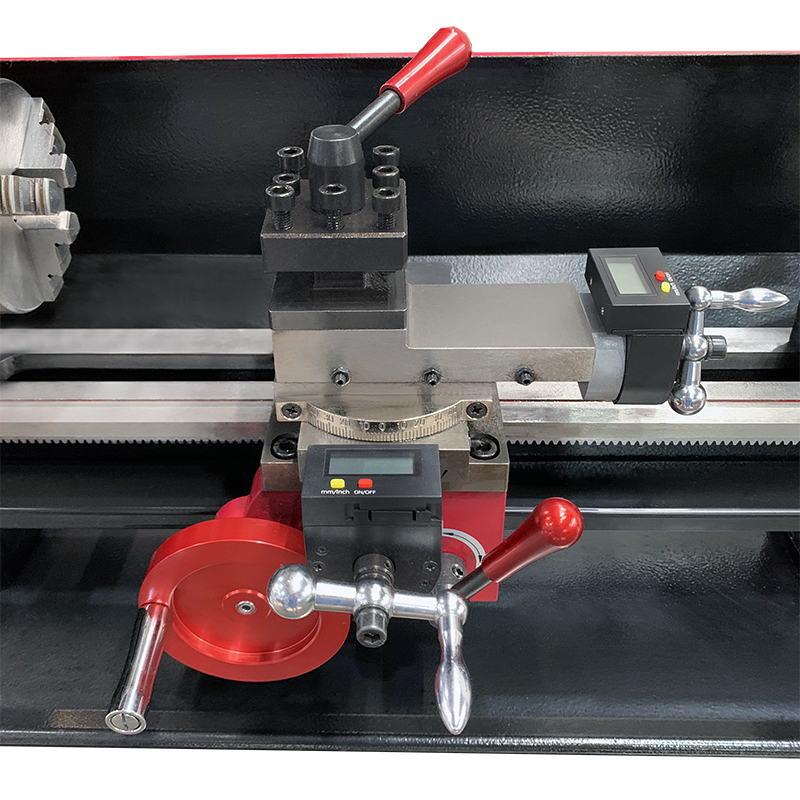

2-axis DRO on cross slide and compound slide, DRO for tailstock.

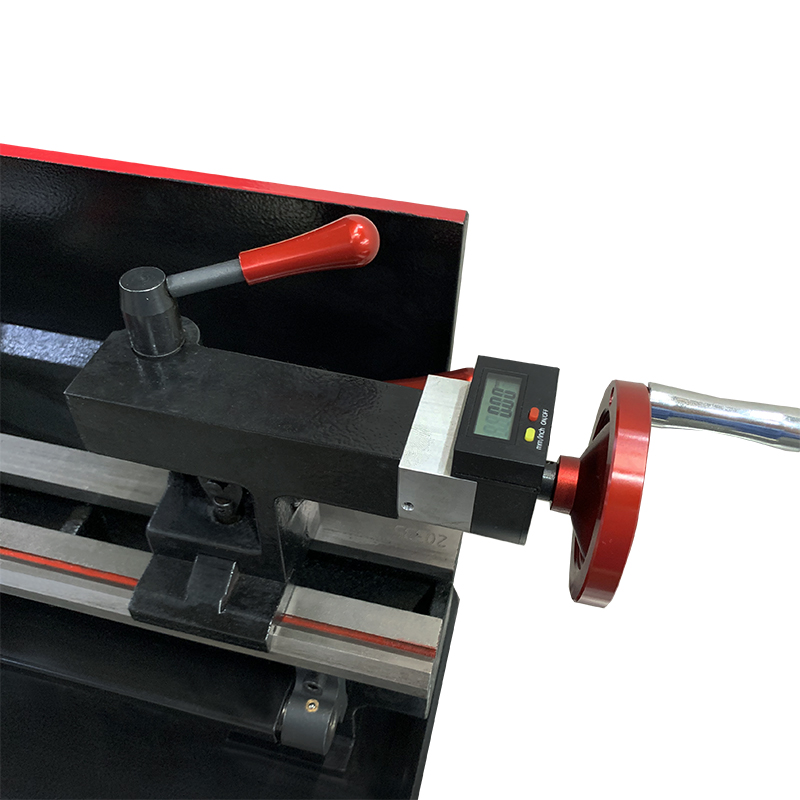

Camlock Tailstock

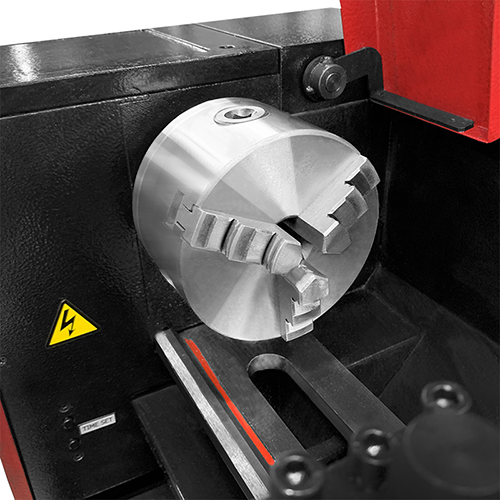

Precision 100mm 3-jaw Chuck

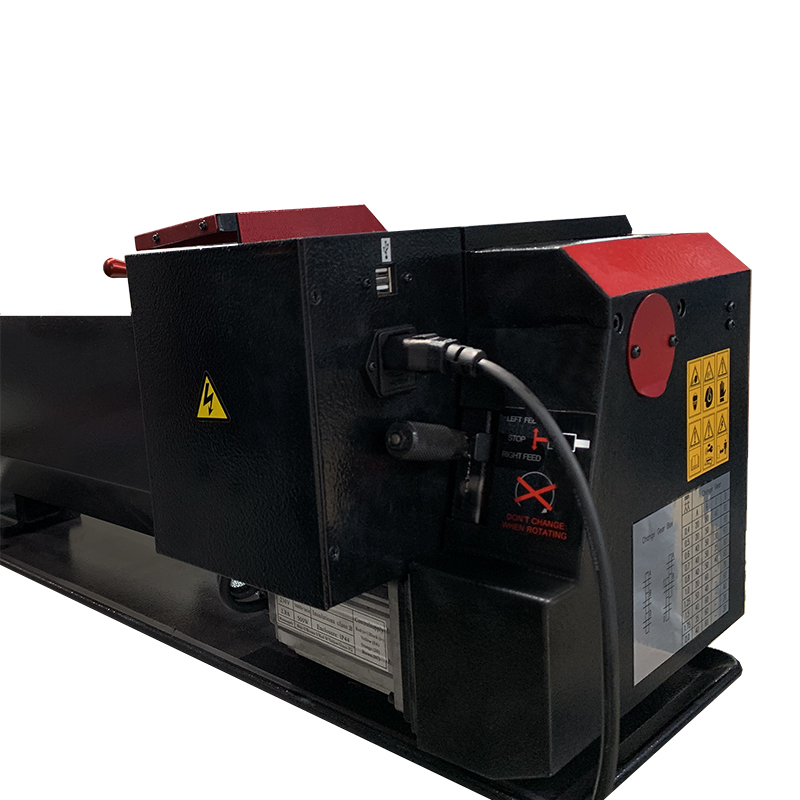

USB power supply x 2
High torque brushless motor for exceptional power and efficiency, built to handle even the toughest turning projects.

Specification:

Swing Over Bed: 180mm

Distance Between Centres: 400mm

Spindle Bore: 20mm

Spindle Taper: MT3

Tailstock Taper: MT2

Cross Slide Travel: 65mm

Compound Slide Travel: 55mm

Power Rating: 610W

Output: 500W DC

Metric Range of Threads: 0.4-2.0mm ( 10 Thread Pitches )

Spindle Speed: 100-2500rpm

Overal Dimension: 900x420x390mm

Weight ( Net / Gross ): 50 / 55kg

Standard Accessories:

100mm 3-Jaw Self-Centering Chuck

MT2 Dead Centre

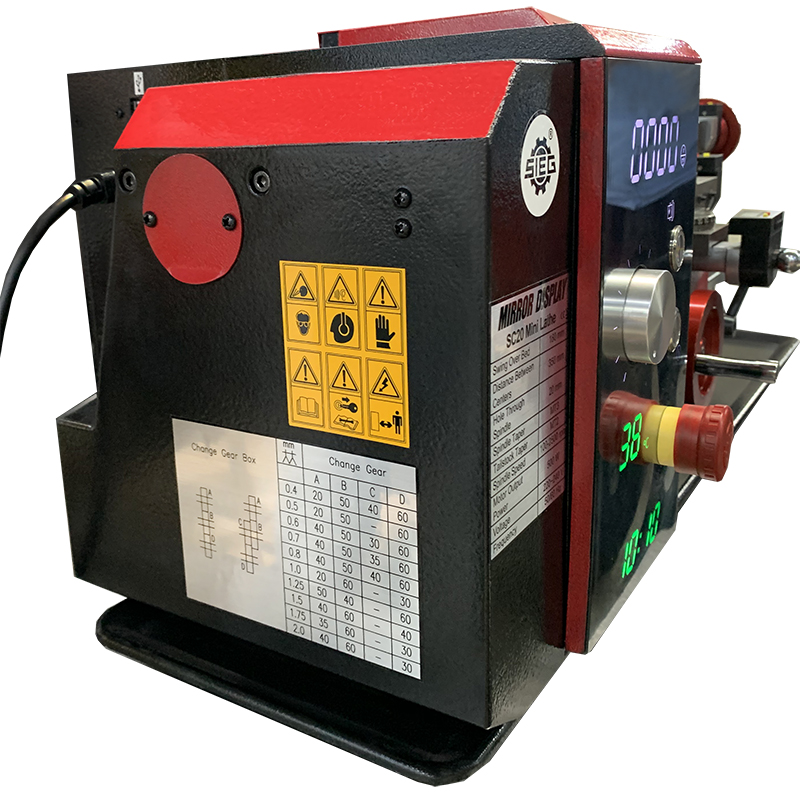

Metric Change Gear Set

Oil Tray

Wrench Set

In Stock!

Quantity
