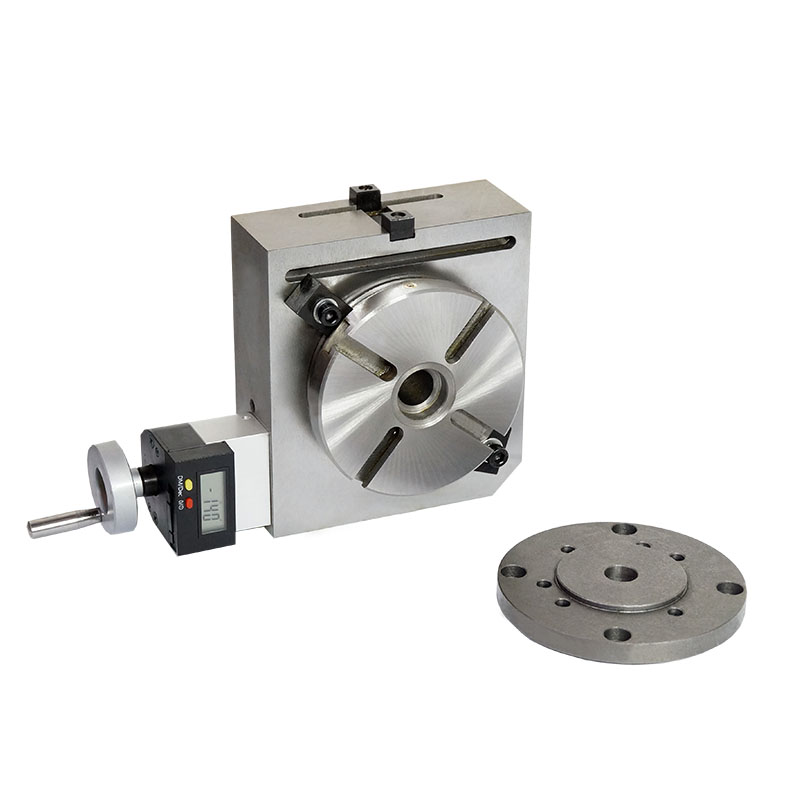

Digital 100mm/4" Rotary Table w. 80mm Chuck Backplate

This Digital 4" Rotary Table comes complete with a Chuck Backplate, 2 Hold-down clamps and 4xT-Nuts. The product may be used horizontally or vertically.

The digital readout is easier to work with, it displays degrees and minutes or decimal degrees

The chuck backplate is for Chinese 80mm 3-jaw or 4-jaw chucks and is also for ER25 / ER32 95mm lathe collet chucks.

Specidications:

Table Dia.: 100mm / 4"

Length: 140mm

Width ( excl. h/wheel ): 126mm

Height: 73mm

Bore Taper: MT2

T-Slot: 8mm ( Please use M6 clamping kit )

Locating Key Width: 10mm

Centre Height ( when vertical ): 68mm

Gear Ratio: 1:72

Resolution: 1 minite ( 0.017 degree )

Min. Vernier Reading: 1'

Chuck Backplate Register: 55mm

Dividing Plate Divisions 6 - 1080 ( Sold Separately )

CLICK HERE TO LEARN MORE ABOUT THIS ROTARY TABLE

Item Options

Accessories Options

Dividing Plate for 100mm Rotary Table (Add $84.15)

Item Price

Your Price

$434.50

In Stock!

Quantity
