Tilting Radial & Swivel Vice 50mm w. Tee Slotted Table

Tilting Radial & Swivel Vice 50mm w. Tee Slotted Table

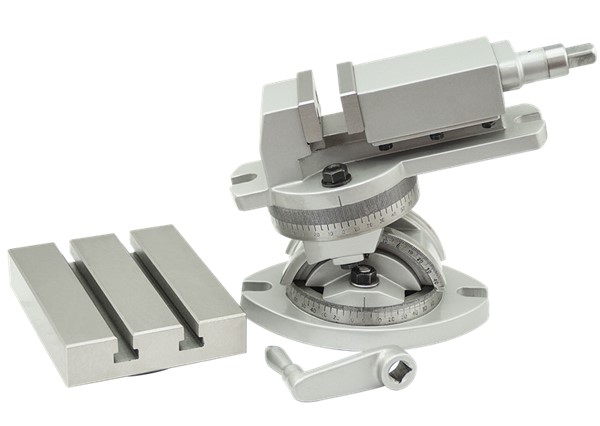

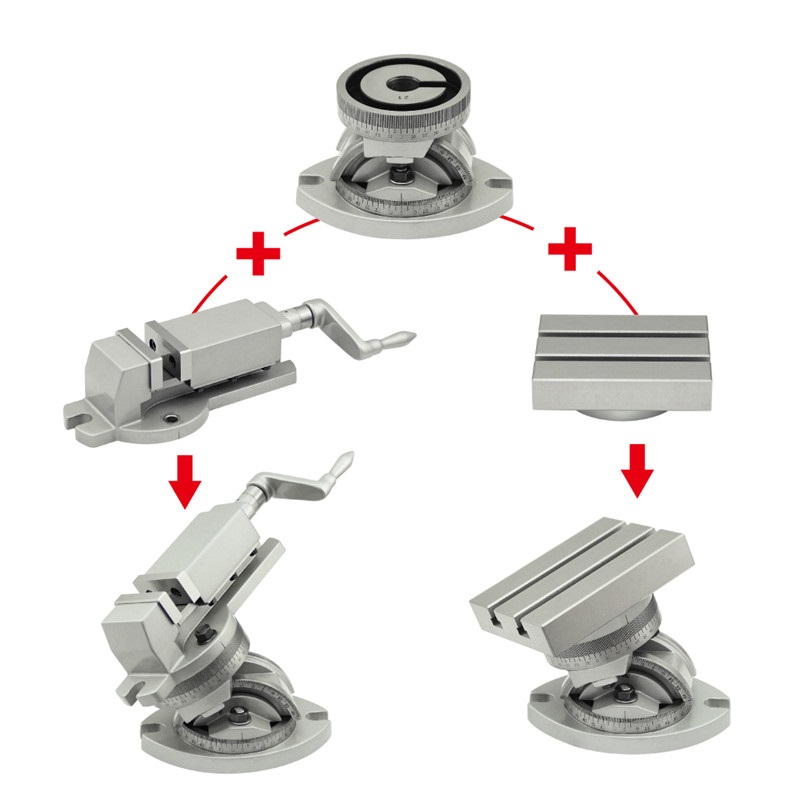

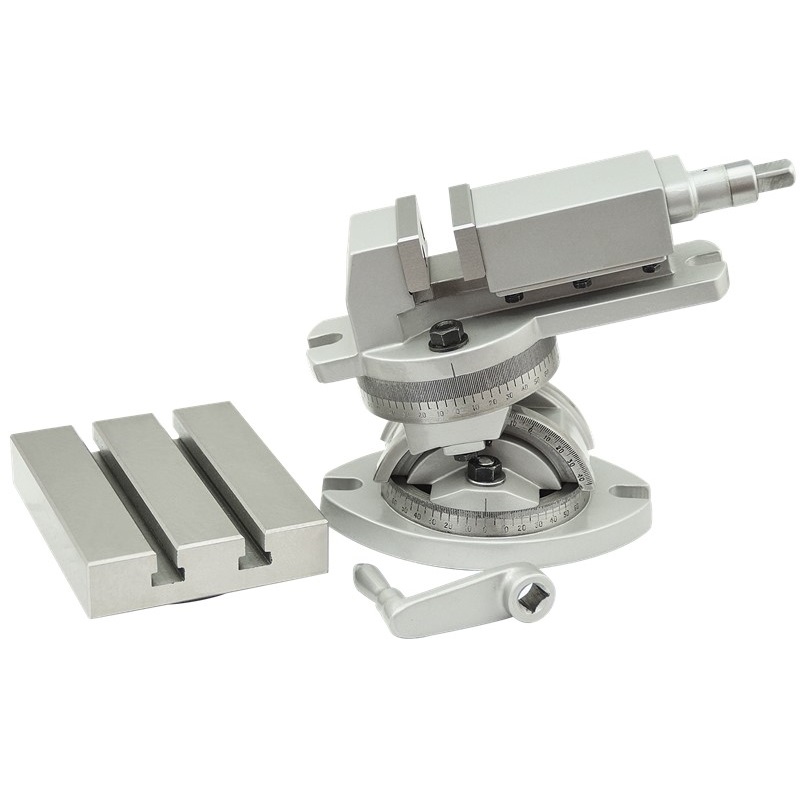

This 50mm Radial Tilt & Swivel Milling Vice can be fitted with either a milling vice or milling table.
The rotary base and vice / table may be swiveled independently through 360° whilst the tilt angle can be adjusted from 0° - 45°, this allows great flexibility when positioning the workpiece.
The milling vice may be used on its' own or with the rotary base.
Features:
- Vice/Table swivels 360°
- Rotary base turns 360°
- Tilt angle: ±0-45°

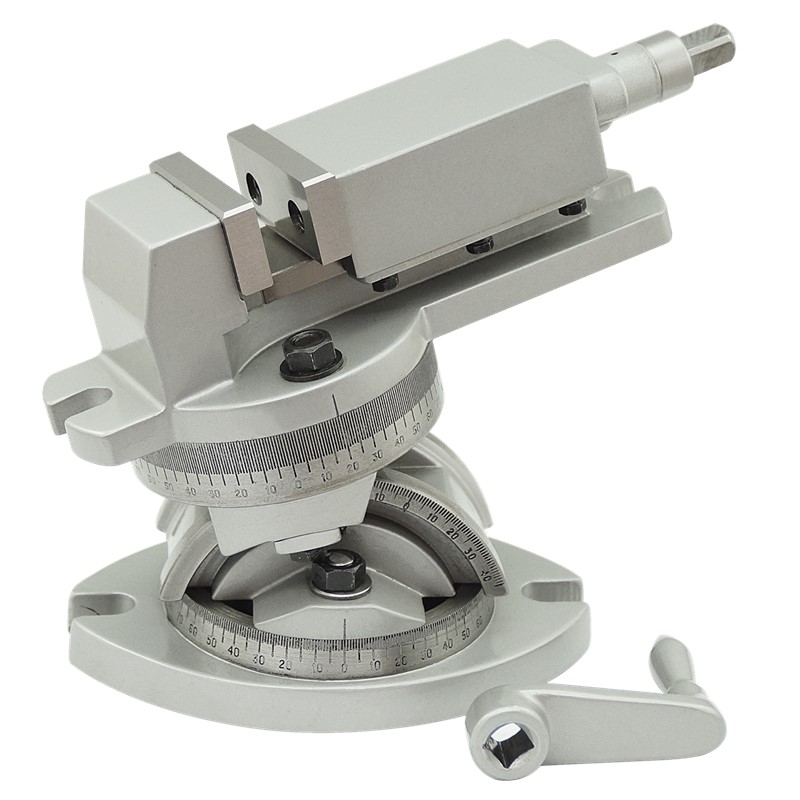

Vice Specification |
Jaw Width |
51mm |
Jaw Depth |
25mm |
Jaw Opening |
52mm |
Vice Size |
250x89x56mm |
Fixing Holes |
8.5mm |
Overall Size |
265x100x144mm |

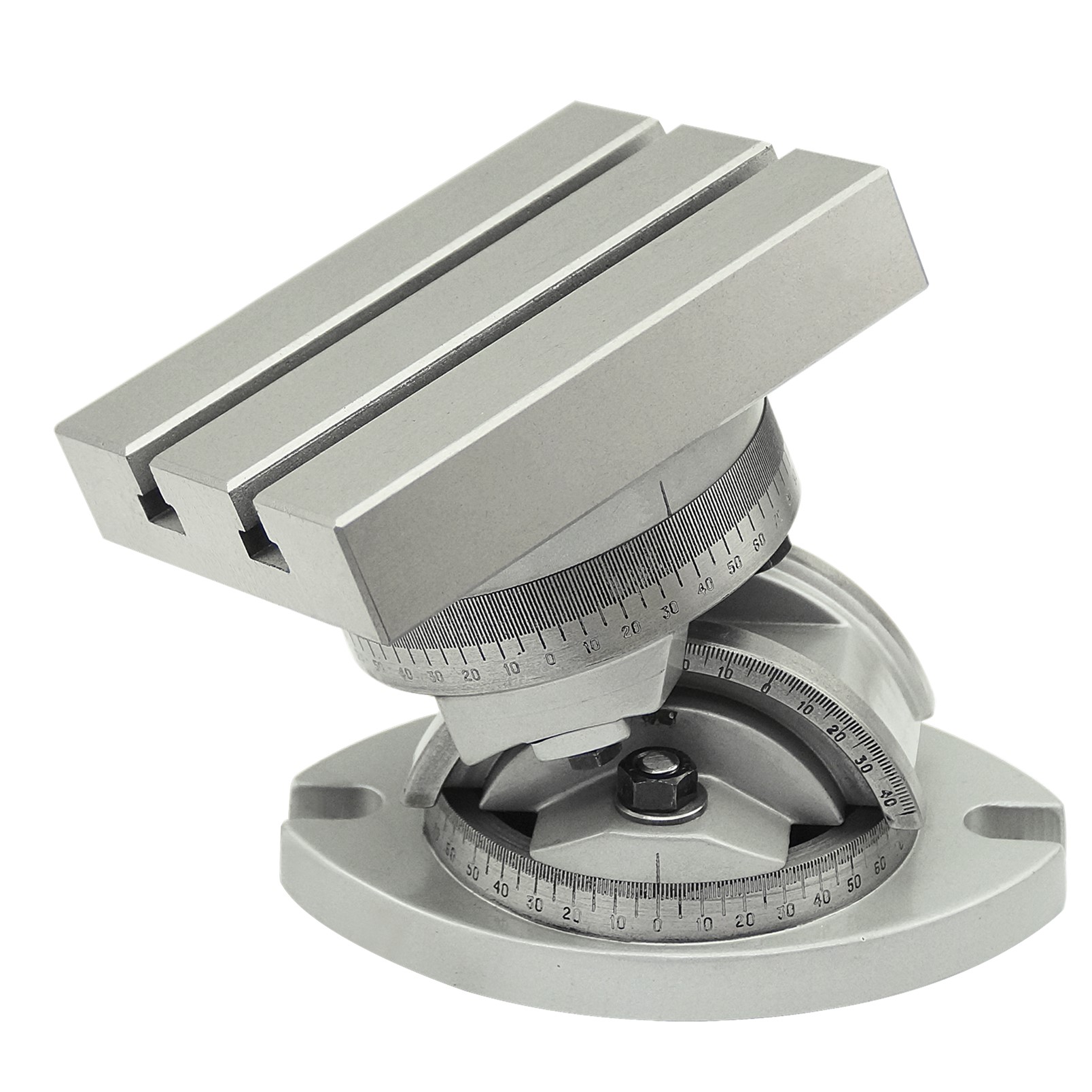

Table Specification |
Table Size |
125x100mm |
T-Slot Size |
8mm ( suits M6 clamping kit ) |
Overall Size |
147x100x125mm |
