Item Name
TiN Carbide Indexable Boring Bar 3pc Set - 10mm
Item #
060-011-10210
Price/ea
$79.75
Product Image Gallery

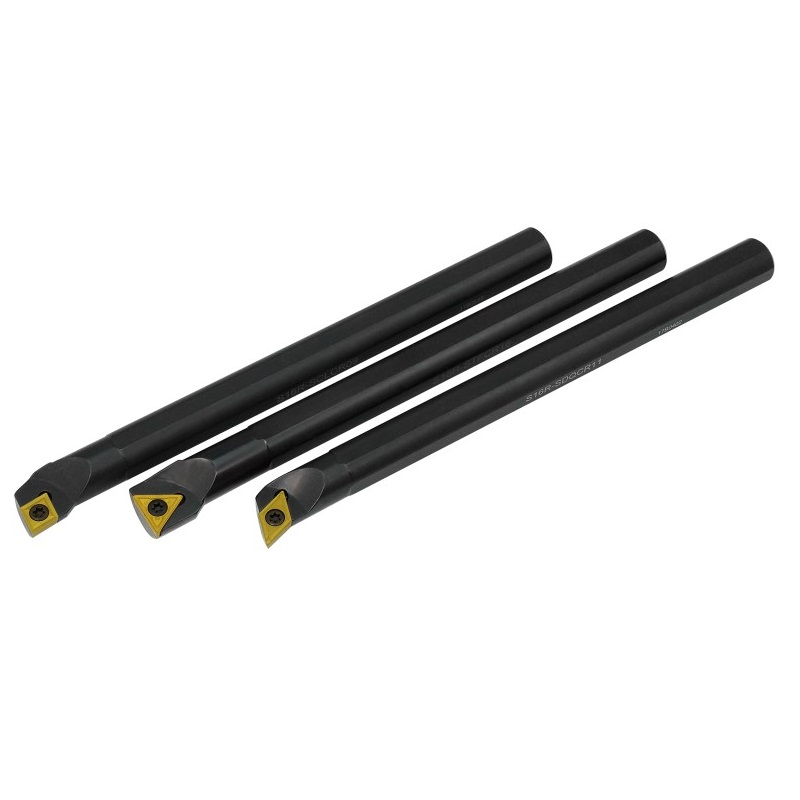

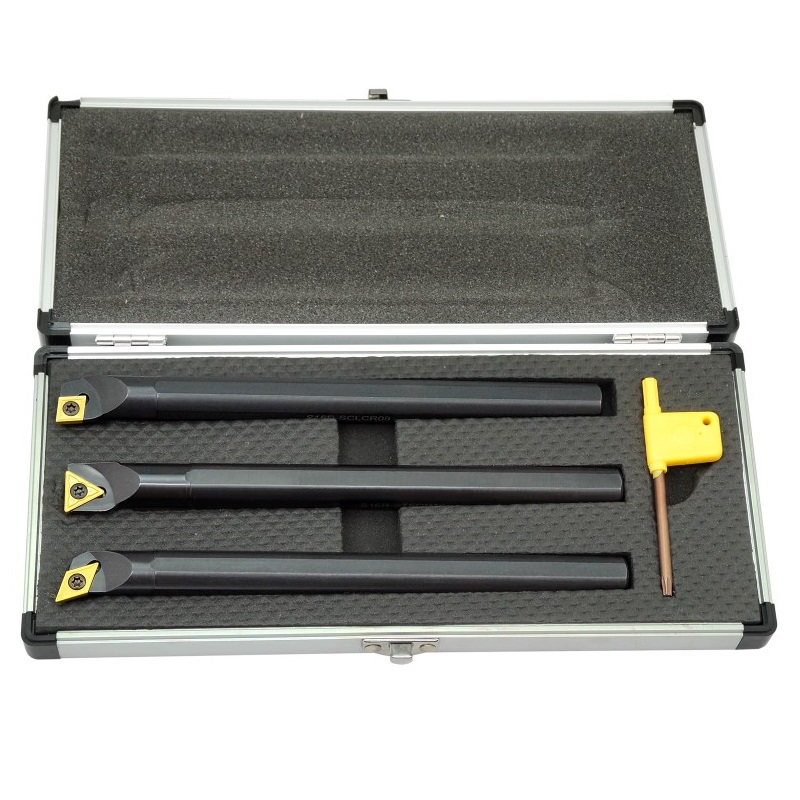

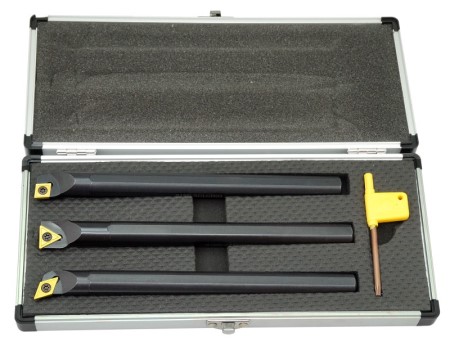

TiN Carbide Indexable Boring Bar 3pc Set - 10mm Set of 3 high quality Indexable Boring Bars with different cutting angle. Thanks to the flats on the shank, this product is easy to align and is suitable for general lathe tool post as well as round boring bar holders. Supplied with inserts and a TORX wrench.

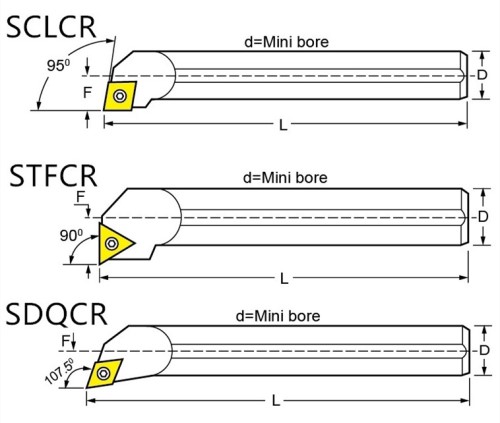

| Shank Size(D) |
Cutter Included |
F |
L |
Min. Bore |
Insert |
Screw |
Key |
| 10mm |
S10K-SCLCR-06 |
7mm |
125mm |
13mm |
CCMT060204 |
M2.5x6 |
T8 |
| S10K-STFCR-11 |
7mm |
125mm |
13mm |
TCMT110204 |
M2.5x6 |
T8 |
| S10K-SDQCR-07 |
7mm |
125mm |
13mm |
DCMT070204 |
M2.5x6 |
T8 |
