Item Details

Item Name

Metric Keyway Broach Set for 4, 5, 6 & 8mm Keyways

Item #

060-100-00100

Price/ea

~~$385.00~~ $346.50

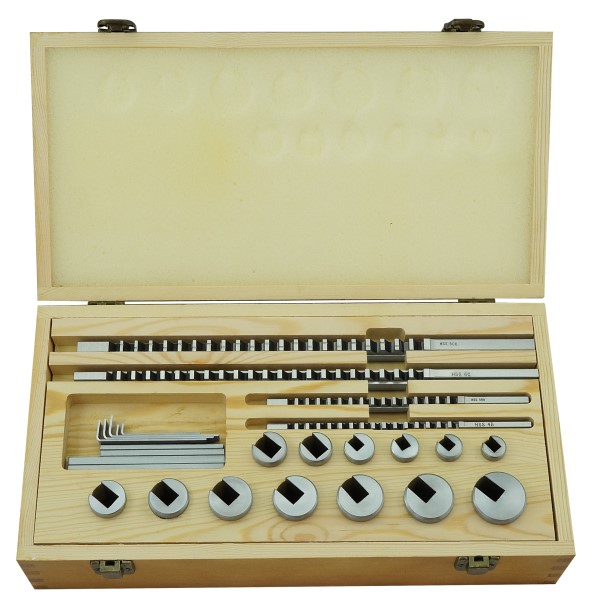

Metric Keyway Broach Set for 4, 5, 6 & 8mm Keyways

High Speed Steel Broaches. Used for cutting 4, 5, 6, and 8mm keyways in a bore using either and arbor press or hyddraulic press.

Collared Busshings
Supplied with all required shims and extension bars
Wooden starage case

Set includes:

Broach Size	Style	Broach Dimensions	Key Sizes	Shims Required	Tooth Pitch	No. of Teeth	Length of Cut	Bore Size
4mm	B	6.5x170mm	4x4mm	1	7mm	16	Min. 7.5mm Max. 32-35mm	12mm, 14mm 15mm, 16mm
5mm	B	6.5x170mm	5x5mm	1	7mm	16	Min. 7.5mm Max. 32-35mm	12mm, 14mm 15mm, 16mm
6mm	C	9.6x300mm	6x6mm	1	9.5mm	22	Min. 10mm Max. 56mm	18mm, 19mm, 20mm, 22mm, 24mm,25mm, 26mm, 28mm, 30mm
8mm	C	9.6x300mm	8x7mm	2	9.5mm	22	Min. 10mm Max. 56mm	18mm, 19mm, 20mm, 22mm, 24mm,25mm, 26mm, 28mm, 30mm

In Stock!

Quantity
