Item Details

Item Name

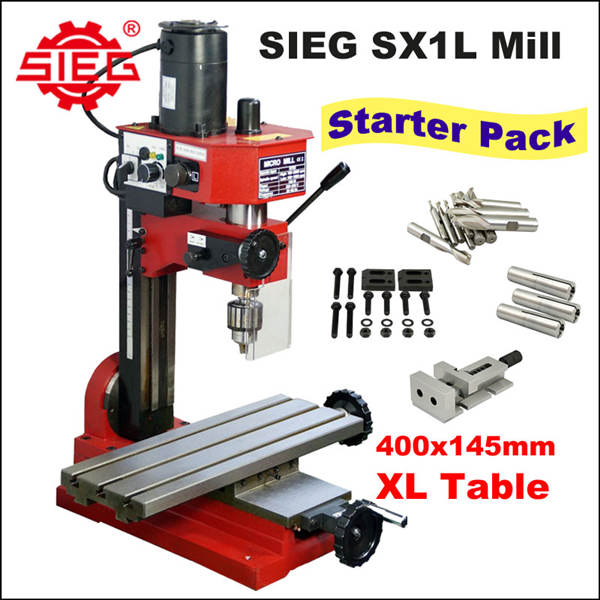

SIEG SX1L Mill Starter Pack

Item #

080-020-16100

Price/ea

~~$995.50~~ $799.99

Product Image Gallery

SIEG SX1L Mill Starter Pack

Includes:

- SIEG 50mm Quick Clamp Machine Vice

- M6 24pcs Clamping Kit suits 8mm T-Slot
- MT2 Collet Set 6,10,12mm (M10 Thread)
- HSS 4 Flute End Mill 2,3,6,9,10 & 12mm (6pcs Set)

SIEG SX1L Mill Specifications

Features:

Overload Protection
Variable Speed
Chuck Guard
Industrial Grade Cast Iron Body
High / Low Gear
Forward / Reverse Switch
Adjustable Dovetail Slideways on all 3 axis
400mm Long Table Exclusive to Ausee in Australia

Specicfications:

Drilling Capacity: 10mm

End Mill Capacity: 12mm

Face Mill Capacity: 16mm

Table Cross Travel: 145mm

Table Longitudinal Travel: 330mm

Headstock Travel: 220mm

Spindle Taper: MT2

Throat: 140mm

Spindle to Table Distance: 0-265mm

Spindle Stroke: 30mm

Table Size: 400x145mm

Table Effective Size: 400x145mm

T-Slot Size: 8mm (M6 T-Nuts)

Max. Column Tilt: ≤45°

Power Rating: 250W

Output: 150W

Spindle Speed: 0-2000rpm(Hi) / 0-1000(Low)

Overall Dimension: 515x360x710mm

Weight (Net/Gross): 40/56kg

Standard Accessories:

Drill Chuck & Arbor

Drawbar

Wrench Set

We're sorry, this item is currently out of stock!
