Item Name

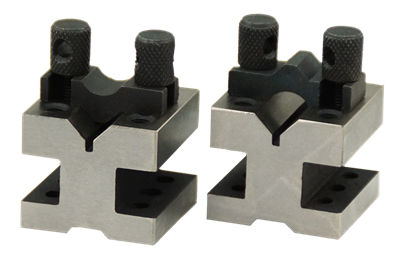

V-Block and Clamp Set 35x35x30mm 2pcs Set
Item #
050-061-00100
Price/ea
$53.90
Features:
- Size: 35x35x30mm.
- Minimum holding diameter: 4mm
- Maximum holding diameter: 12mm
- Hardness: HRC52-58.
- M5 thumb screws and swing away clamps.
- Clamps may be reversed to hold smaller parts.
- Three clamping positions along the vee.
- Can be used on it's side or end without interference from the clamp or screws.
- There are six M5 threaded holes in the bottom for use with fixtures.
- The set comprises 2 Vee Blocks and 2 Clamps packed in a wooden storage case.
