Item Details

Item Name

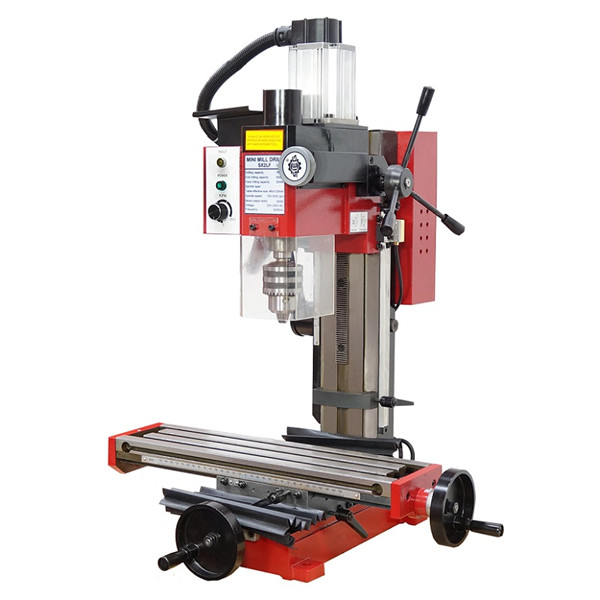

SIEG SX2LF HiTorque Mill with MT3 Spindle

Item #

080-020-28002

Price/ea

$1,265.00

Product Image Gallery

SIEG SX2LF HiTorque Mill with MT3 Spindle

Feature:

HiTorque Brushless Motor with Torque Control
Super Quiet Toothed Belt Drive

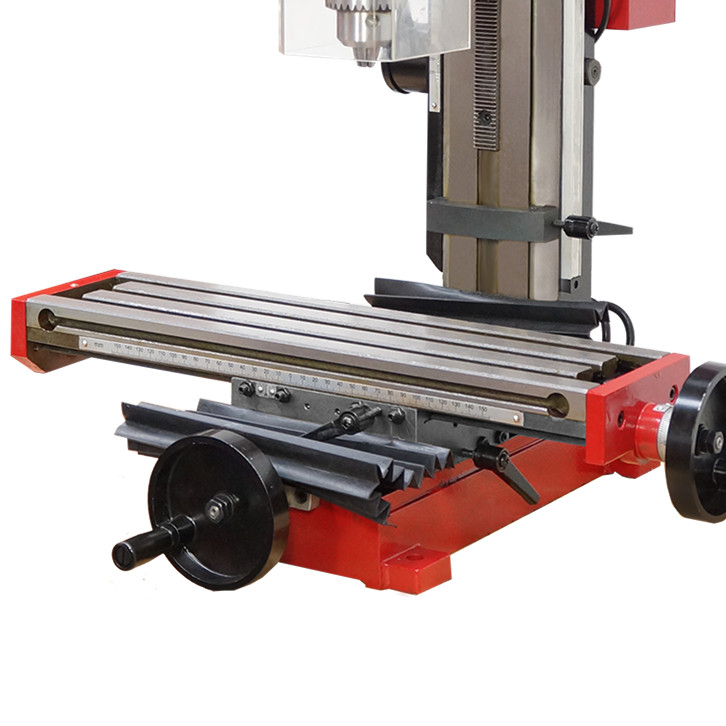

460x120mm Extra Long Worktable
Chuck Guard with Safety Switch

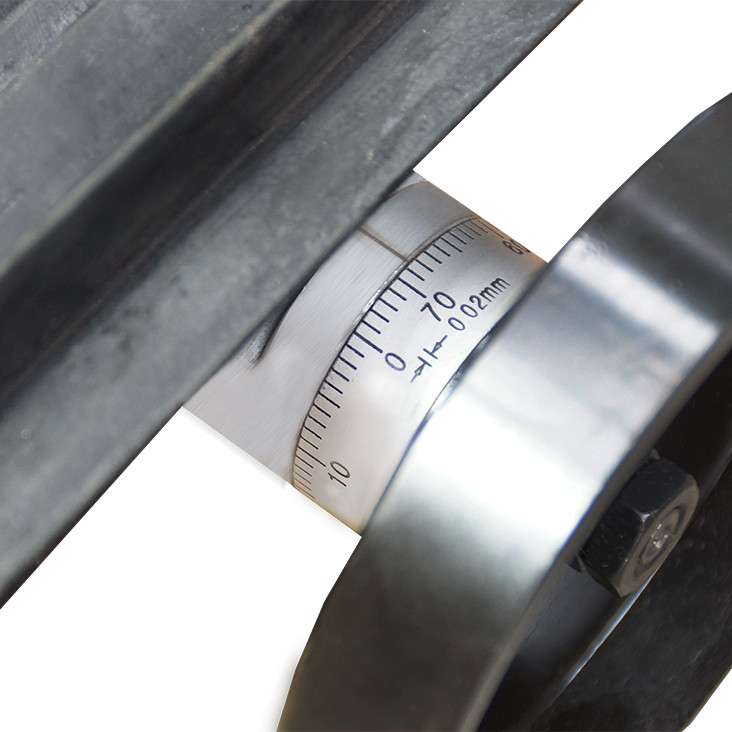

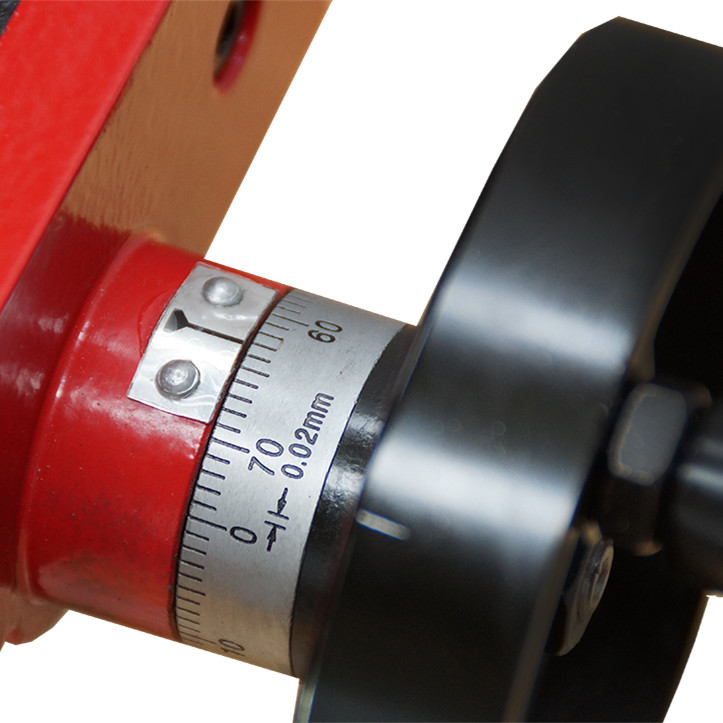

Fine Feed
Heavy Duty Cast Iron Base

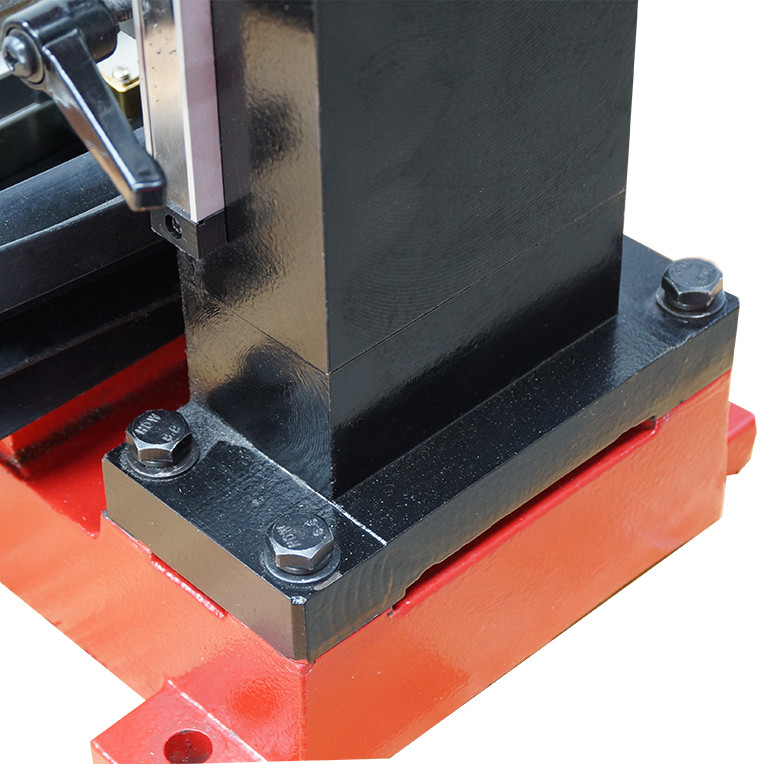

Extra Rigid, Bigger Section Fixed Column Mounted Directly to the Base!!

Specifications:

Drilling Capacity: 16mm

End Mill Capacity: 20mm

Face Mill Capacity: 35mm

Table Travel: 300x130mm ( X, Y )

Head Stock Travel: 250mm

Spindle Taper: MT3

Thoat: 167mm

Max. Spindle to Table: 15-285mm

Table Size: 460x120mm

T-Slot Size: 12mm

Power Rating: 610W

Output: 500W

Spindle Speed: 0-2500rpm

Overall Dimension: 520x580x760mm

Weight （ Net/Gross ): 58 / 75kg

Standard Accessories:

Drill Chuck with Arbor

Drawbar

Wrench Set
