Item Details

Item Name

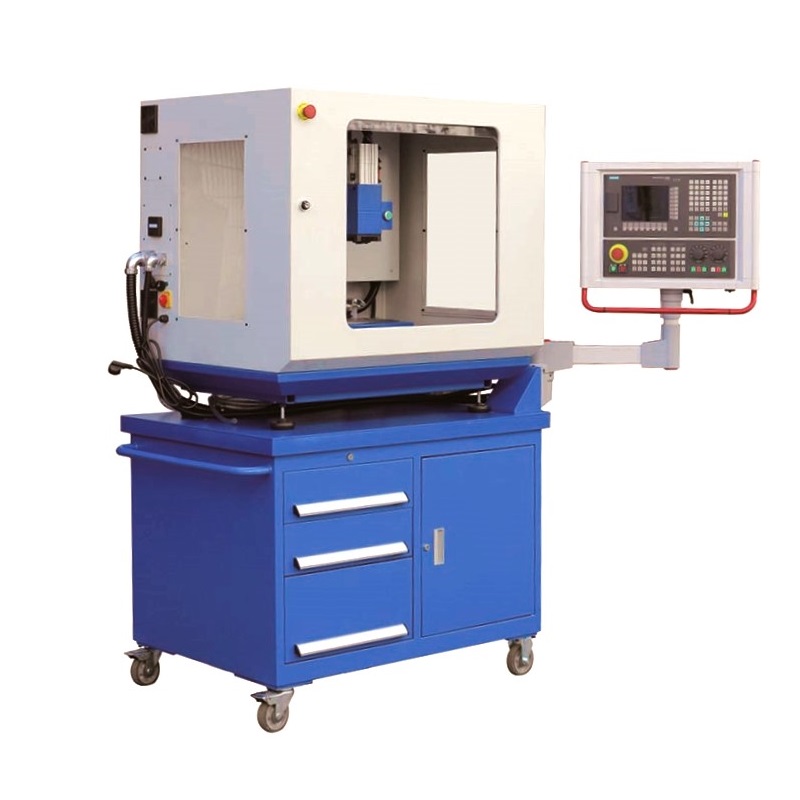

SIEG CompactMill SUPER CNC Machining Ctr. - SIEMENS 808D

Item #

080-025-00100

Price/ea

$21,900.00

SIEG CompactMill SUPER CNC Machining Ctr. - SIEMENS 808D

Feature:

4 station tool automatic changer

SIEMENS 808D control system

Hybrid servo motor

Pneumatic door

Pneumatic spindle

Linear guideway

One-shot lubrication pump

Portable on castor wheels (with brake)

Specifications:

Spindle:

Motor type: Brushless

Spindle taper: ISO20

Spindle totor: 1kw (1.34hp)

Spindle speed: 100-5000r.p.m.

Table:

Table size: 400x145mm

T-Slot: 12mm, 3 slots

Max. load: 20kg

Travel:

X travel: 230mm

Y travel: 152mm

Z travel: 170mm

Spindle to table: 70-240mm

Spindle centre to column: 200mm

Drive motor & feed rate:

X, Y & Z-axis motor type: Hybrid Servo

X, Y & Z-axis motor torque: 3Nm

Rapid feed rate: 4000mm/min

Accuracy:

Positioning accuracy: 0.01mm

Repeatability: 0.005mm

Tool Changer:

No. of tools: 4

Time of tool changing: 8s

Air supply requirements: 620kPa, 1/4" NPT female connection provided

Power requirements: 230V, 50Hz, 8A

Weight (N.W./G.W.): 280kg/350kg

Overall dimension: 1300x800x1800mm

We're sorry, this item is currently out of stock!
