SIEG X0 Deluxe Mini Drill / Mill

Item #

080-020-00000

Price/ea

$456.50

Product Image Gallery

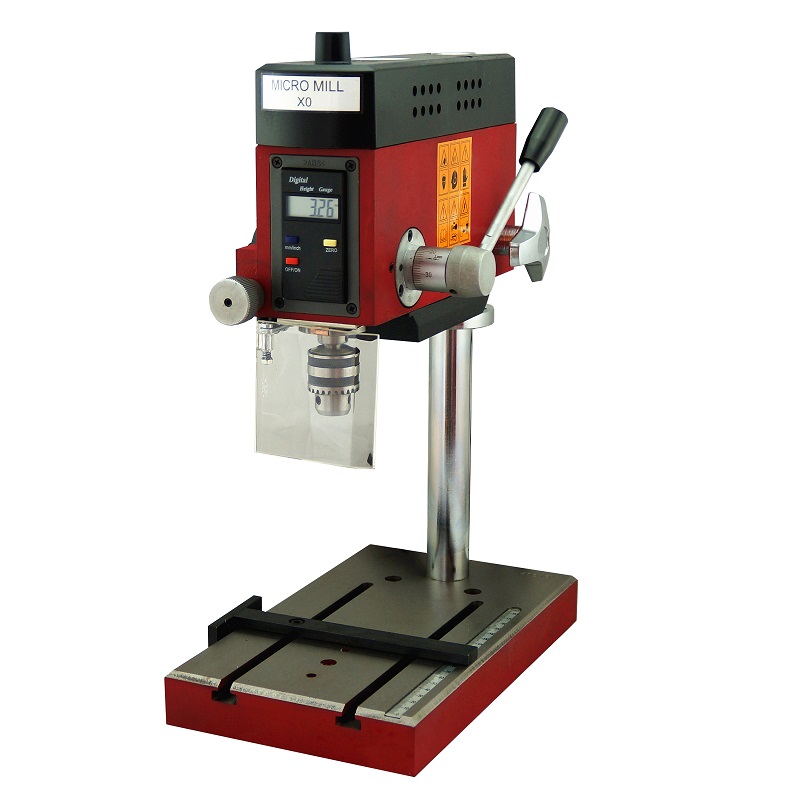

SIEG Deluxe X0 Drill / Mill

Just the right size and right feature for all small drilling projects.

When you own a SIEG X0 Drill / Mill, you will never have to worry again about having the right tool when precise and accurate drilling is critical to your project.

Feature:

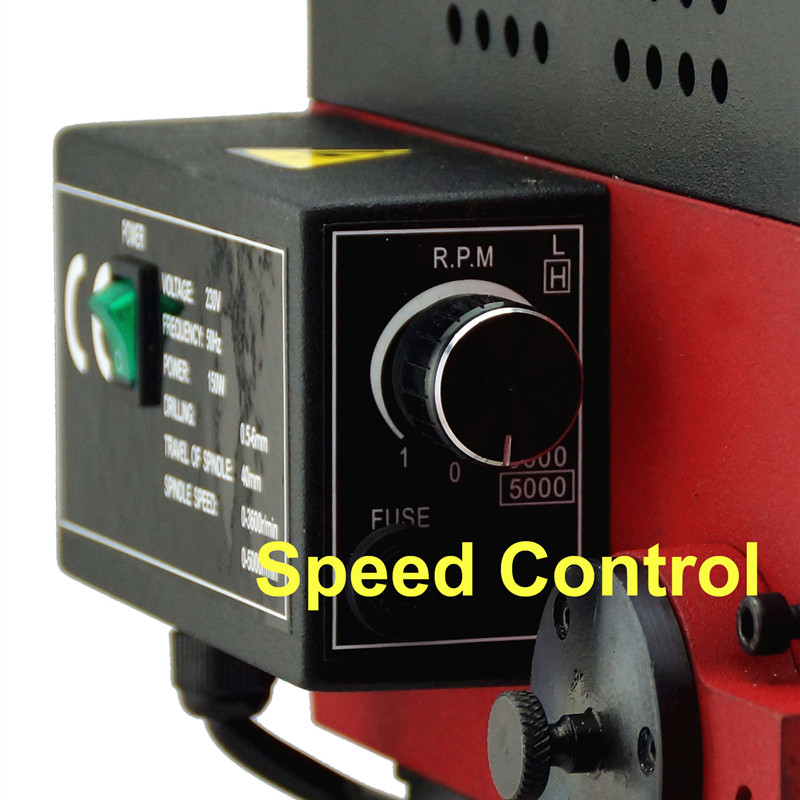

Variable Speed
High / Low Gear

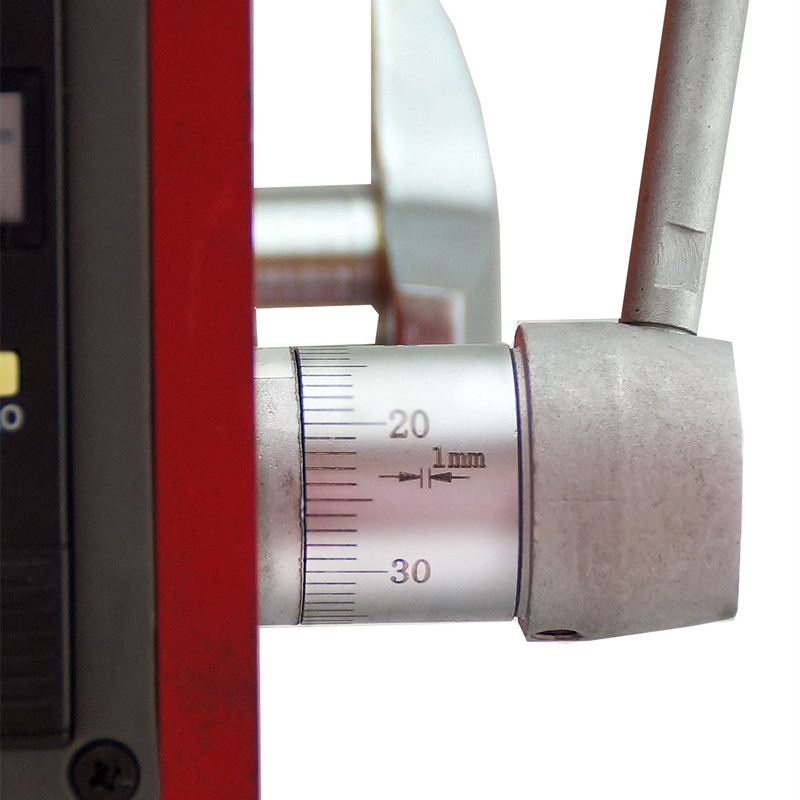

Fine Feed

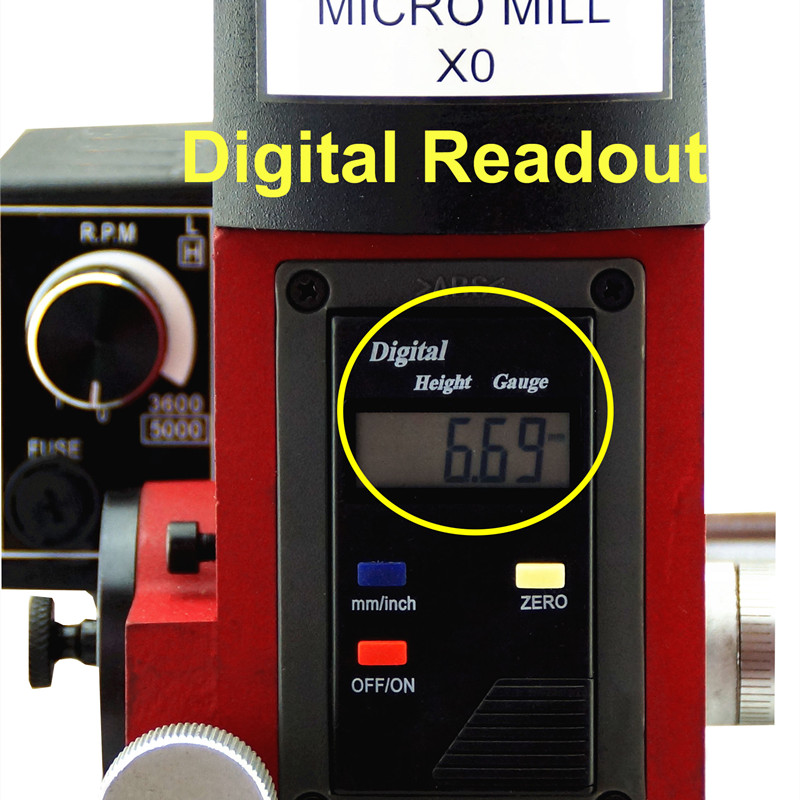

Digital Depth Readout ( Metric / Imperial )
Rugged Cast Metal Housing
Solid Steel Column
Includes a Drill Chuck
Ball Bearing Spindle
Calibrated Depth Control with Positive Stop
Sliding Gauge for Drilling in-line Holes
Cast Metal Base with Machines Surface
Low Vibration, High Accuracy

Specifications:

Drilling Capacity: 6mm

End Mill Capacity: 6mm

Throat: 165mm

Spindle to Table: 205mm

Spindle Stroke: 40mm

Spindle Taper: JT1 ( Male )

Spindle Speed: 0- 5000rpm ( High Range )

0-3600rpm ( Low Range )

Spindle Drive: Polygroove Belt

Power Rating: 210W

Output: 150W

Overall Dimensions: 165x275x460mm

Weight ( Net / Gross ): 15kg / 20kg

Standard Accessories: 6mm Drill Chuck, Chuck Guard, Sliding Gauge

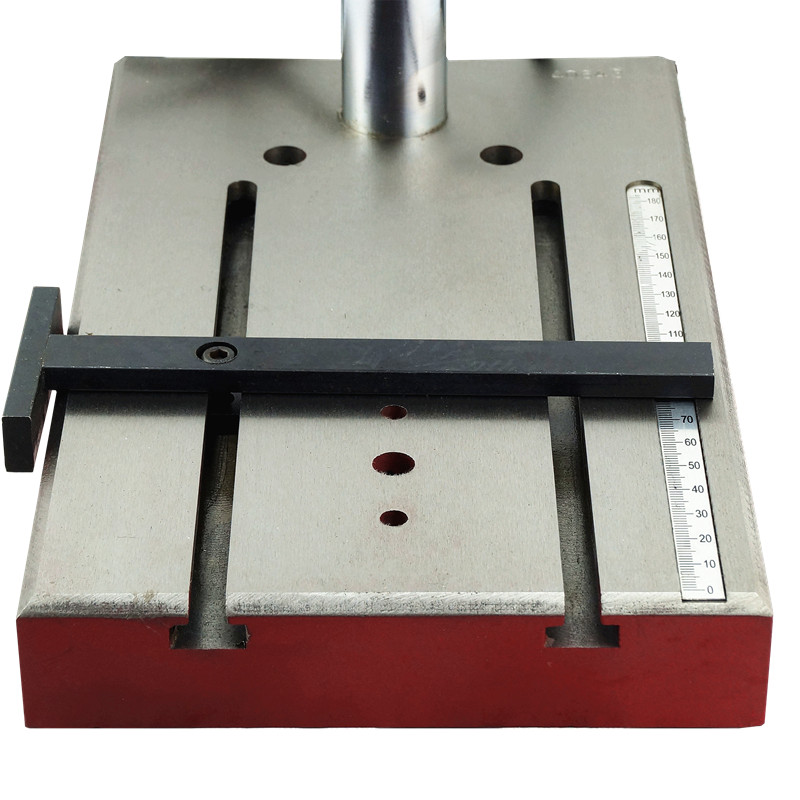

We do keep 200x90mm cross table for this X0 mill/drill to make it more practical and doing milling jobs, please select the option below.
