Item Details

Item Name

SIEG SC10/700 Pro HiTorque Gear Head Lathe

Item #

080-010-30781

Price/ea

$5,995.00

Product Image Gallery

SIEG SC10/700 Pro HiTorque Gear Head Lathe

Features:

2-axis DRO
Coolant System
LED Worklight
Machine Stand
Brushless Motor with Torque Control

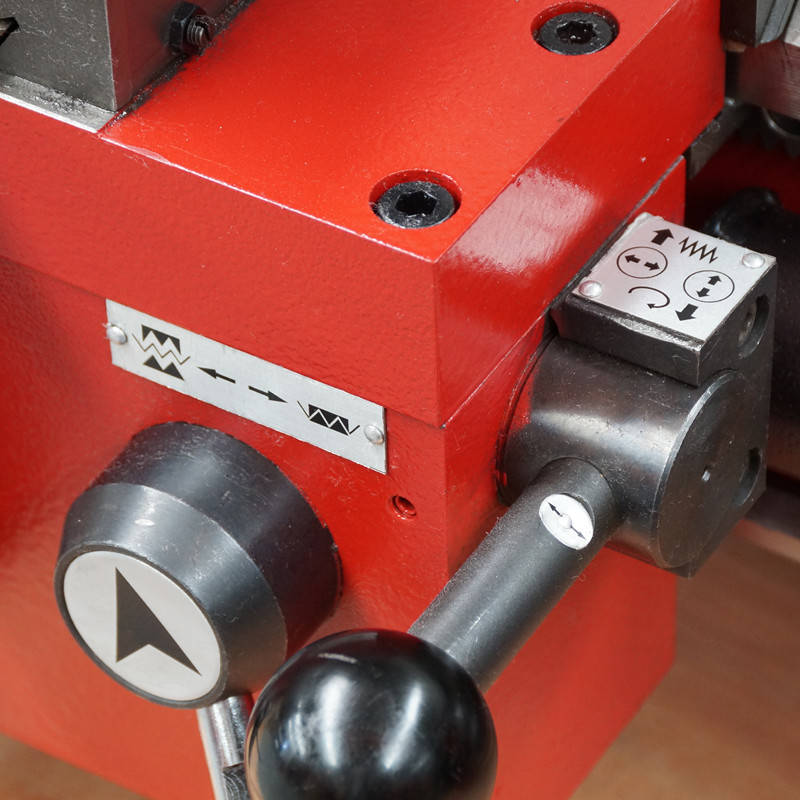

Cross & Longitudinal Power Feed

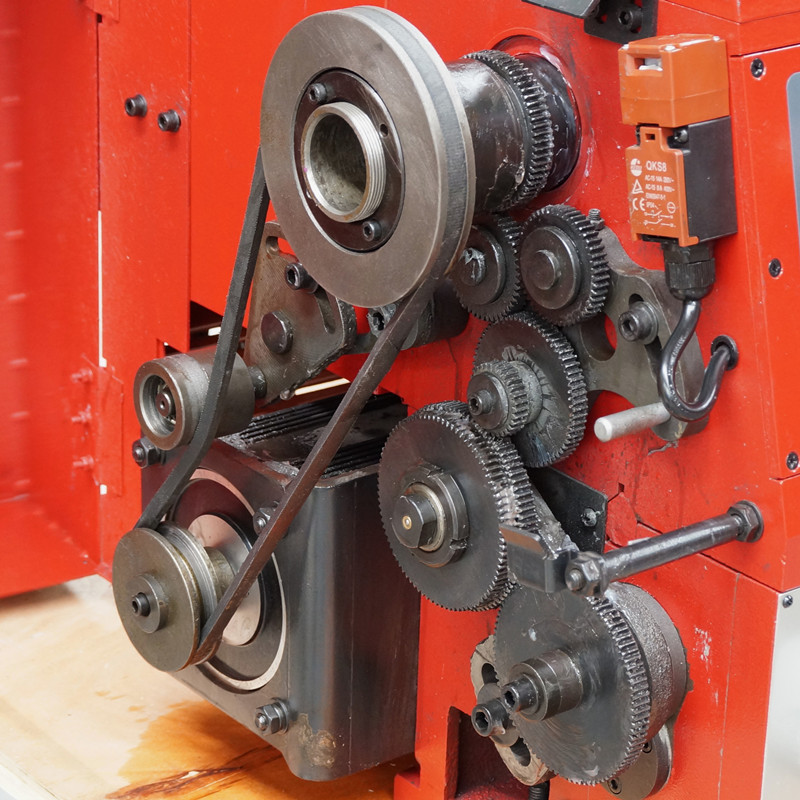

In-Built Oil Bathed Gear Box
Belt Drive for Quieter Operation

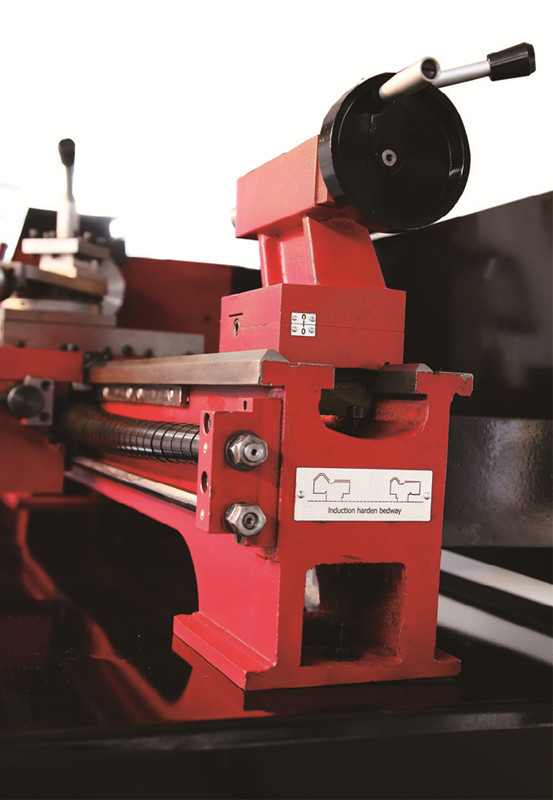

Cam-Lock Tailstock
Metal Gears
T-Slots on Cross Slide
38mm Bore
Switched Chuck Guard
Leadscrew Guard
Leadscrew Overload Clutch
Metric & Imperial Threads
Emergency Stop Button
Heavy Duty Induction Hardened Cast Iron Bed

SIEG SC10 HiTorque Gear Head Lathe Specifications

Swing Over Bed: 305mm

Distance Between Centres: 700mm

Spindle Bore: 38mm

Camlock Spindle: D1- 4

Spindle Taper: MT5

Tailstock Taper: MT3

Cross Slide Travel: 155mm

Compound Travel: 80mm

Power Rating: 1810W

Output: 1500W

Range of Threads ( Metric ): 0.25-2.5mm ( 14 Thread Pitches )

Range of Threads ( Imperial ): 12-96 TPI ( 9 Thread Pitches )

Spindle Speed: 100-2000rpm

Overall Dimension ( mm ): 1500x750x730mm

Weight ( Net / Gross ): 215 / 255kg

Standard Accessories:

160mm D1-4 3-Jaw Self-Centering Chuck

MT5 Spindle Centre

MT3 Dead Centre

Fixed & Travelling Steady

Face Plate

Wrench Set

In Stock!
