Item Details

Item Name

Universal Transfer Punch and Aligner - Large

Item #

070-100-00555

Price/ea

$18.70

Product Image Gallery

Good for transfering hole centres using a template with varying hole sizes.

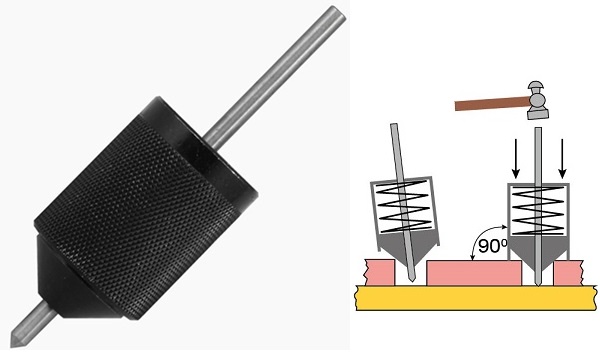

The alignment cone is spring loaded and slides in an outer cup which squares the whole assembly to the workpiece when pressed down on the template. The sliding centre punch may then be struck to mark the workpiece.

Size: Large

Punch Dia.: 4.75mm

Min. Hole Size: 16mm

Max. Hole Size: 26mm

We're sorry, this item is currently out of stock!
