Good for transfering hole centres using a template with varying hole sizes.

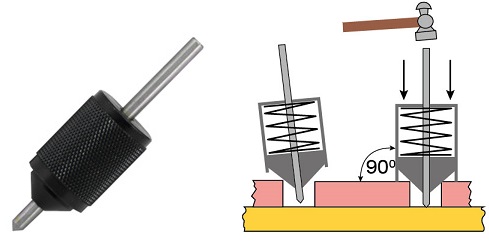

The alignment cone is spring loaded and slides in an outer cup which squares the whole assembly to the workpiece when pressed down on the template. The sliding centre punch may then be struck to mark the workpiece.
Size: Small
Punch Dia.: 4.75mm
Min. Hole Size: 6mm
Max. Hole Size: 16mm
