Item Details

Item Name

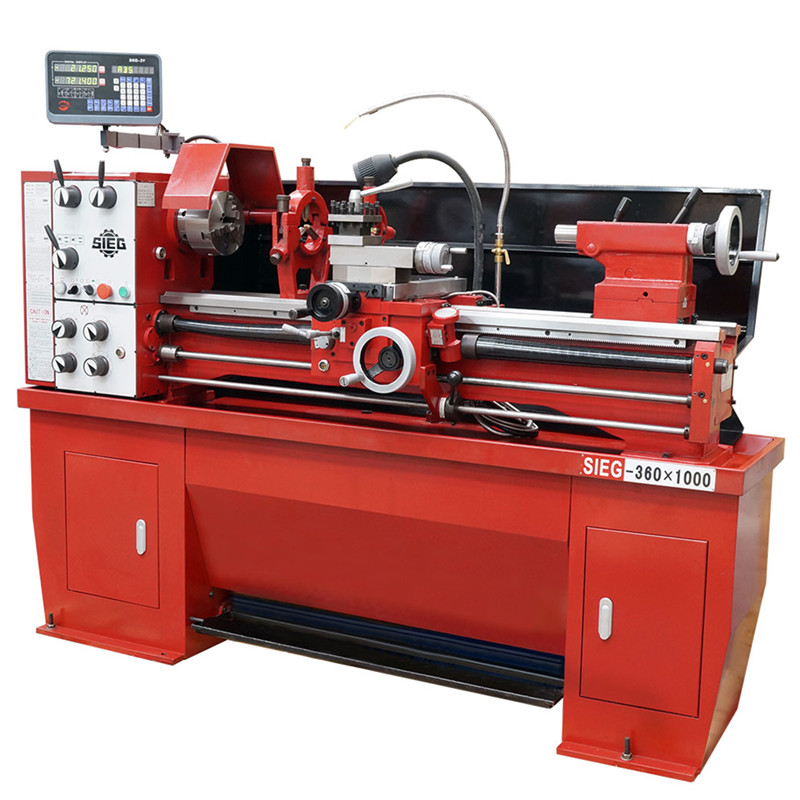

SIEG 360x1000 Centre Lathe with Digital Readout

Item #

080-011-36110

Price/ea

~~$8,580.00~~ $7,699.00

Product Image Gallery

SIEG 360X1000 CENTRE LATHE

Features

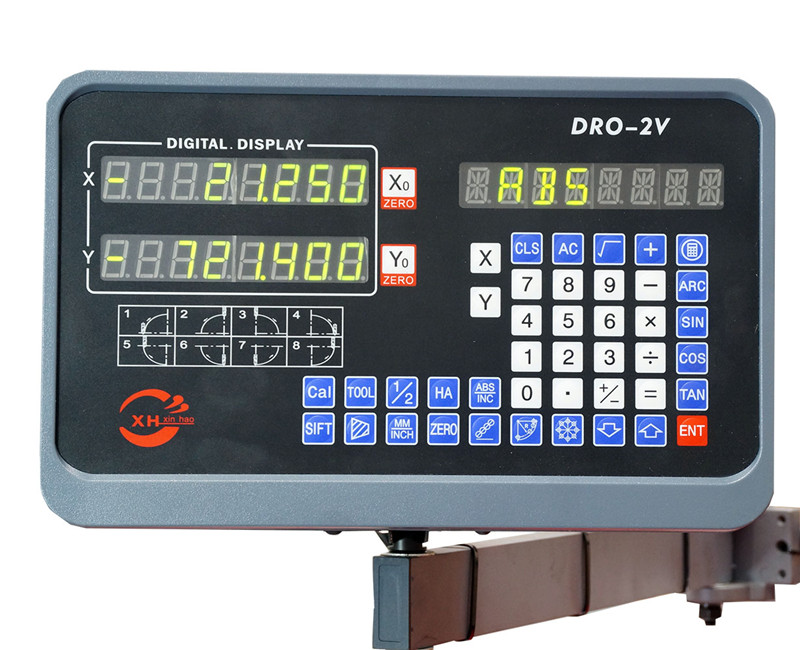

2-axis digital readout system
Coolant system with nozzle
LED light
Leadscrew cover
Foot brake
Heavy duty precision ground V bed, induction hardened

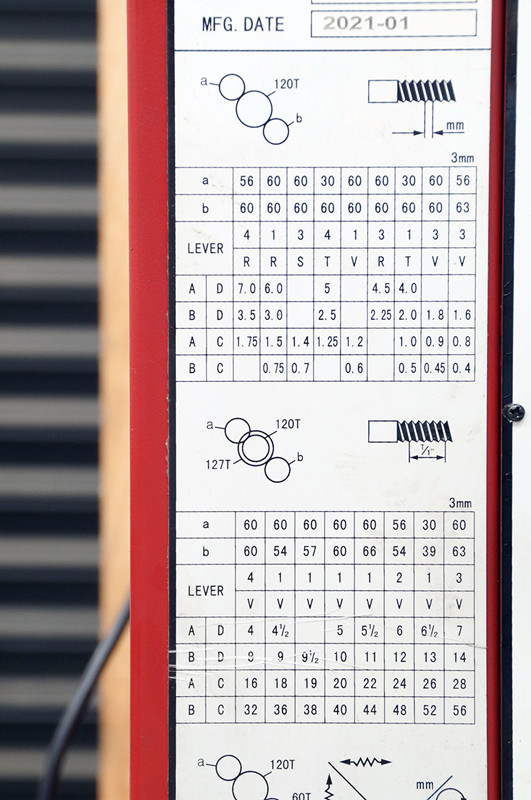

Metric and Imperial thread cutting
Oil bathed gear box with oil sight glass

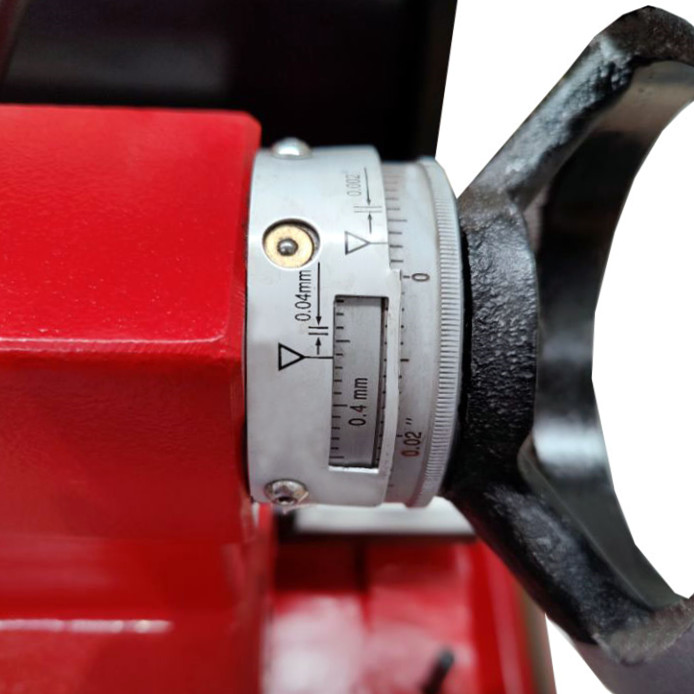

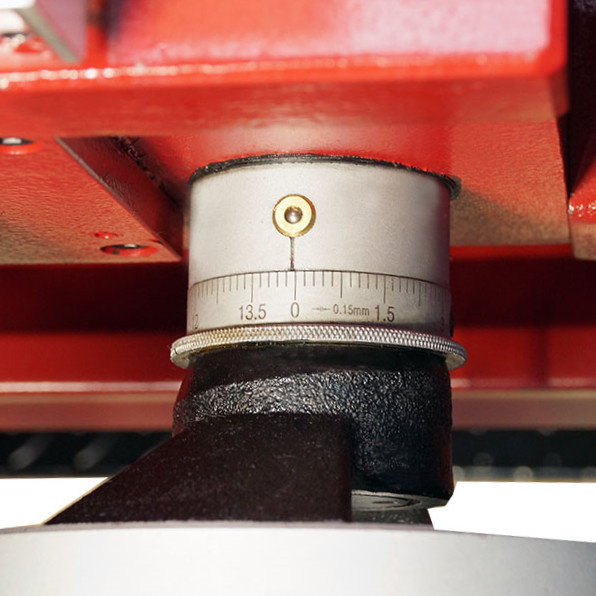

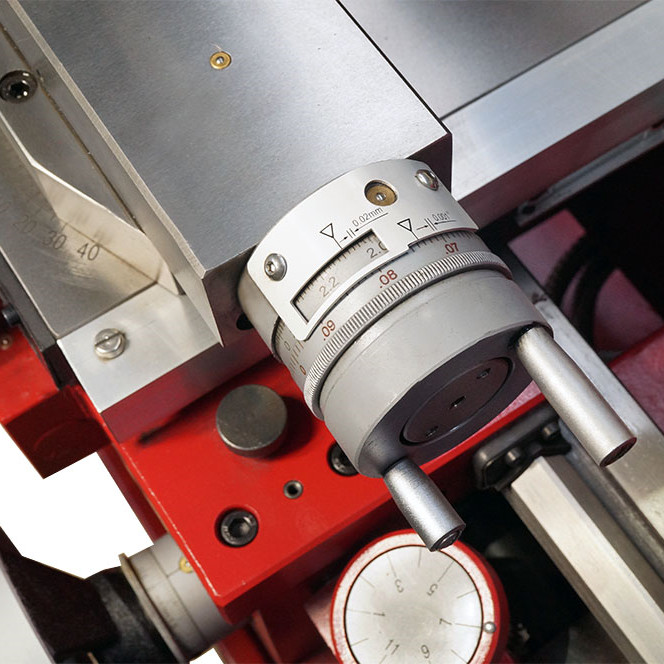

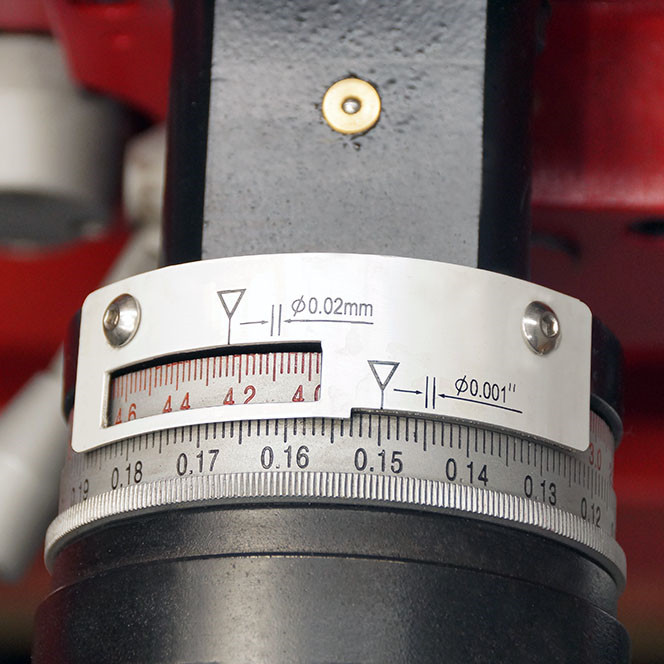

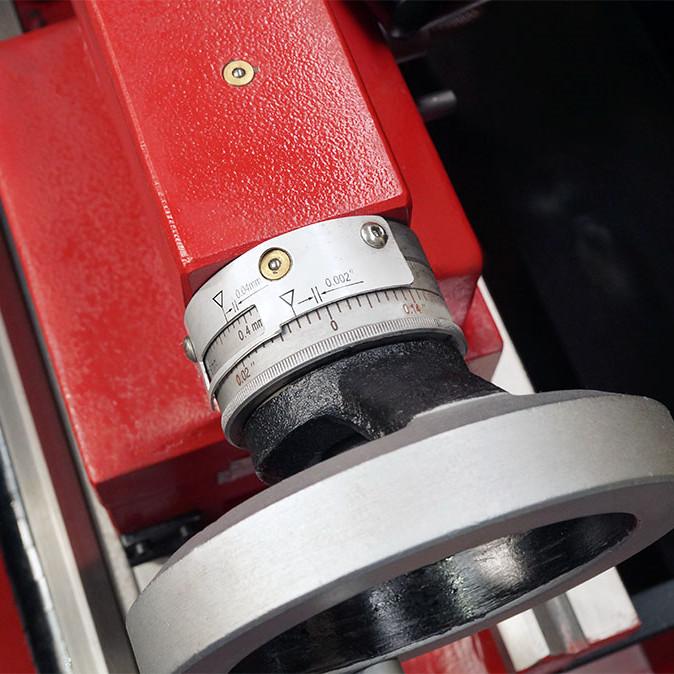

Dual calibrated dial on cross slide, compound slide and tailstock
Chuck guard and gear box guard with micro switch for safety

Swing Over Bed	360mm
Swing Over Cross Slide	215mm
Center Height	180mm
Distance Between Centres	1000mm
Bed Width	205mm
Spindle Bore	41mm
Cam-lock Spindle Type	D1-4
Spindle Taper	MT5
Tailstock Taper	MT4
Spindle Speed (step/rpm)	8 steps / 70-2000rpm
Cross Slide Width	140mm
Cross Slide Travel	208mm
Compound Slide Width	82mm
Leadscrew Type	Full Metric
Tool Size	16x16mm
Metric Thread Range	26 (0.4-7mm)
Imperial Thread Range	34 (4-56TPI)
Cross Feed Rate (X)	0.014-0.380mm/rev
Longitudinal Feed Rate (Z)	0.052-1.392mm/rev

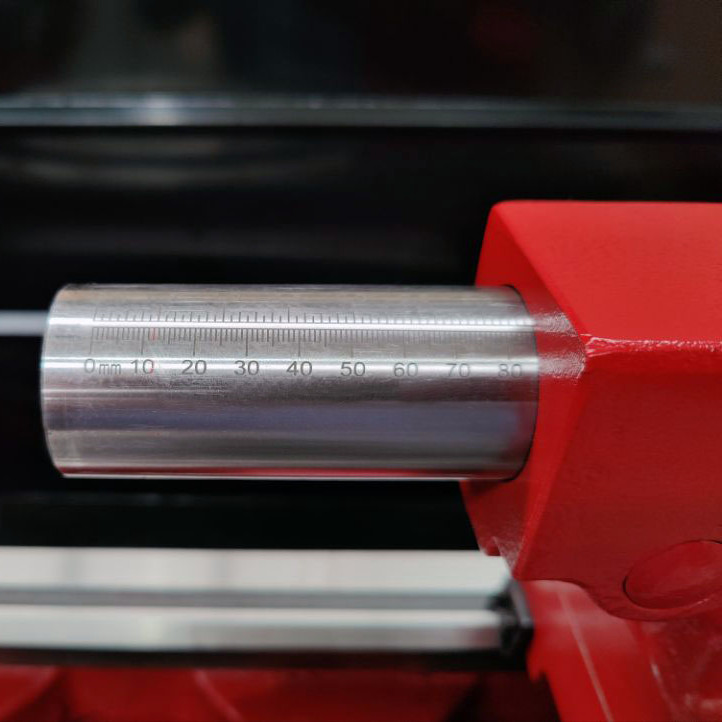

Tailstock Sleeve Dia.	42mm
Tailstock Sleeve Travel	114mm
Motor Output	2.25KW / 3HP
Voltage	415V, 3 Phase
Machine Size	1930x800x1258mm
Shipping Size	1940x1270x1500mm
Weight (Net/Gross)	625 / 725kg

Standard Inclusions:

Industrial grade 2-axis digital readout

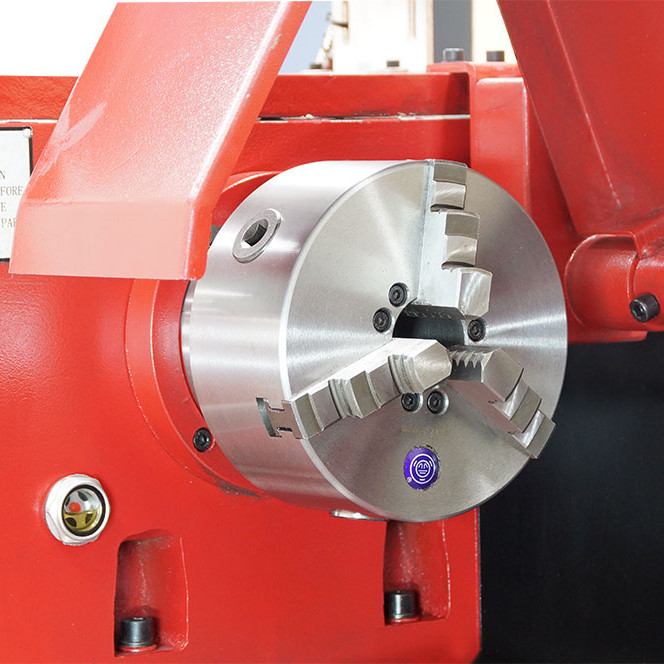

200mm 3-jaw self-centering chuck
200mm 4-jaw independent chuck
Leadscrew cover
Foot brake
Face plate

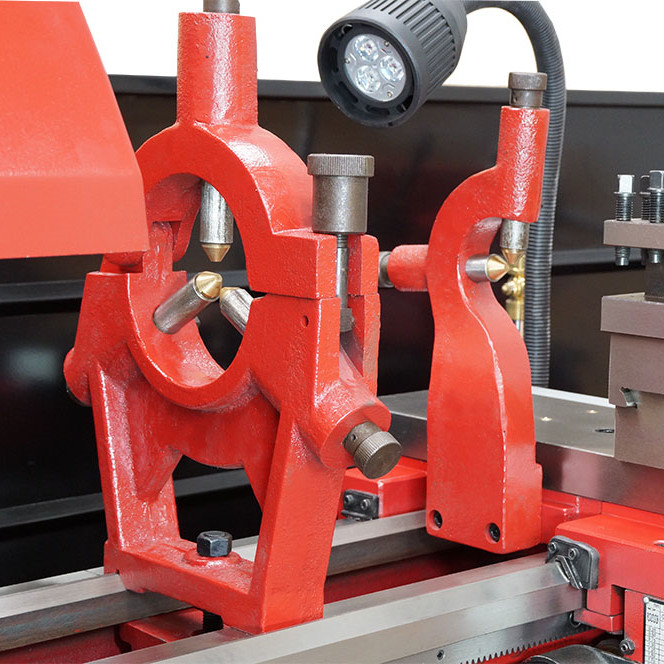

Fixed and travelling steady
Change gear set (built-in)

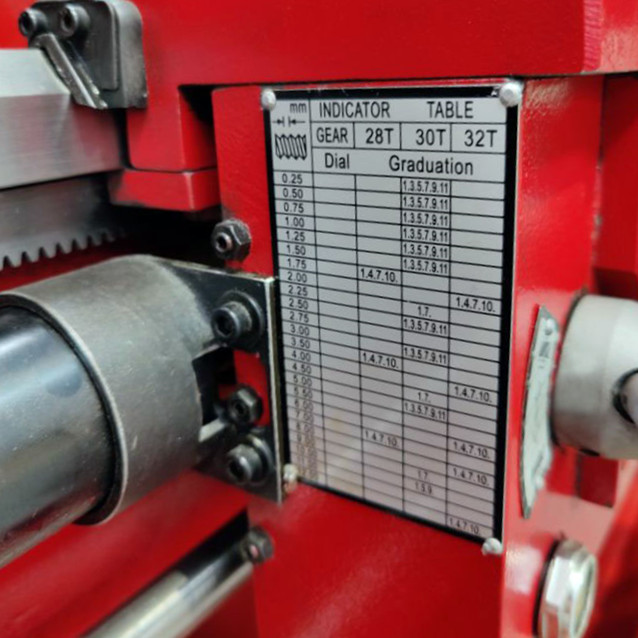

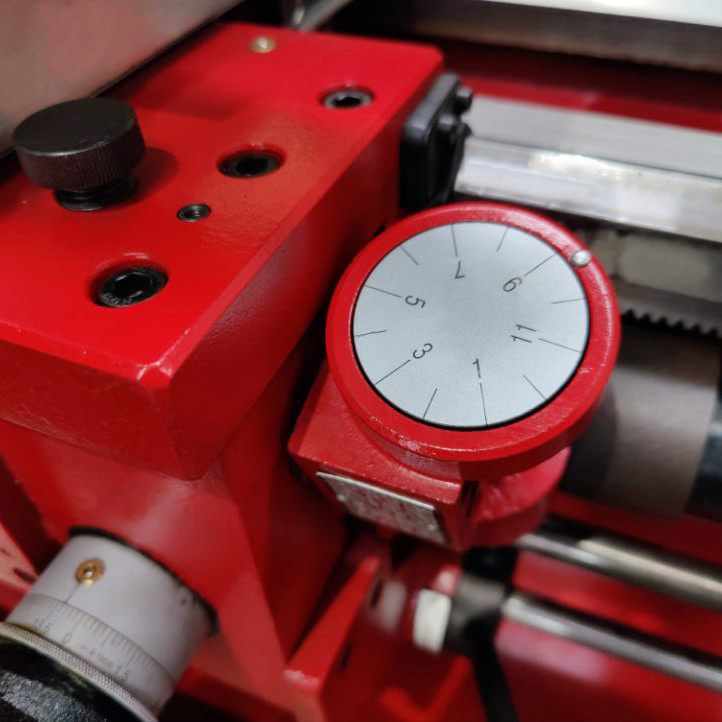

Thread chasing dial
LED light
Splash guard and drip tray
Tool box with tools for maintenance

In Stock!
