 SIEG SC6 HiTorque Lathe
Item Details
SIEG SC6 HiTorque Lathe
Item Name
SIEG SC6 HiTorque Lathe
Item #
080-010-68000
Price/ea
$2,799.50  $2,199.00

Product Image Gallery

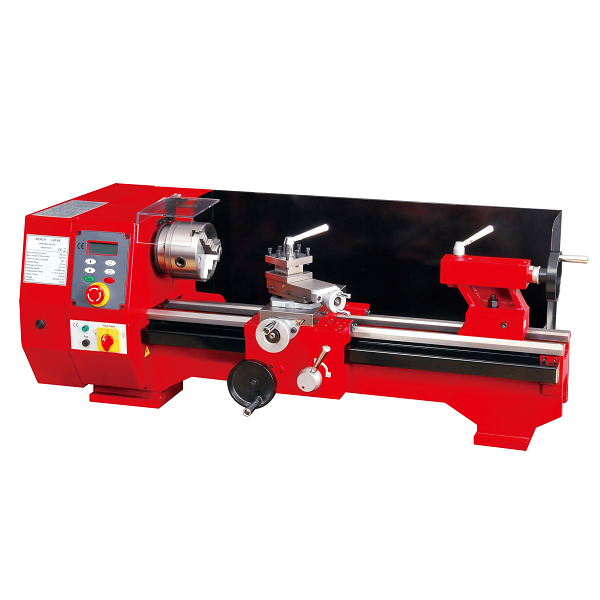

SIEG SC6 HiTorque Lathe
SIEG SC6 Bench Lathe

Feature:
Brushless Motor with Torque Control
Leadscrew Guard
Cuts Metric & Imperial Threads
Emergency Stop Button
Switched Chuck Guard
Heavy Duty Cast Iron Bed
Metal Gears

Specifications:
Swing Over Bed: 250mm
Distance Between Centres: 550mm
Spindle Bore: 20mm
Spindle Taper: MT3
Tailstock Taper: MT2
Cross Slide Travel: 110mm
Compound Travel: 75mm
Range of Threads: 0.4 - 3mm ( 12 Thread Pitches )
                              10-44 TPI ( 8 Thread Pitches )
Spindle Speed: 125 - 2000rpm
Overall Dimension: 1170x640x580mm
Power Rating: 1250W
Output: 1000W
Weight (Net/Gross): 165 / 180kg

Standard Accessories:
125mm 3-Jaw Self-Centering Chuck
MT2 Dead Centre
MT3 Spindle Centre
Fix Steady & Travelling Steady
Face Plate
Change Gear Set
Wrench Set
