Item Details

Item Name

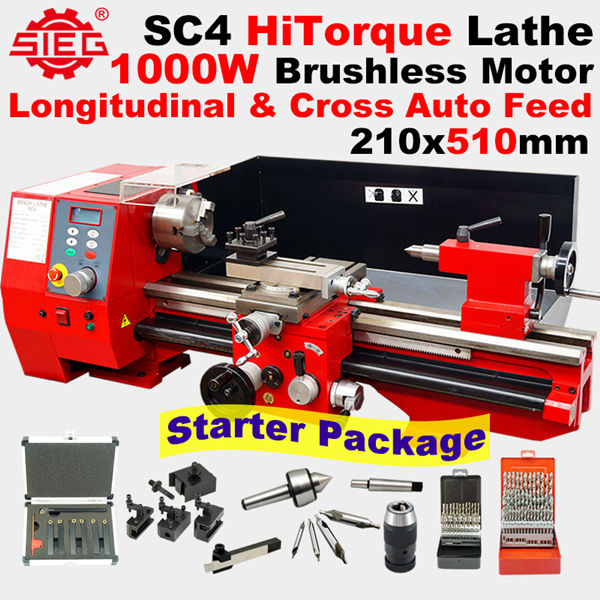

SIEG SC4/510 HiTorque Lathe Starter Pack

Item #

080-010-48100

Price/ea

$2,750.00

SIEG SC4 HiTorque Lathe Starter Pack

Includes:

- TiN Carbide Indexable Turning Tools 7pcs Set

- Quick Change Tool Post with 3 Tool Holders ( Tool post with 3xRegular holders)

- 8mm Parting Off Tool

- Keyless Drill Chuck, JT3, 1-16mm

- MT2/JT3 Drill Chuck Arbor

- HSS Drill Bit 1-6mm 51pcs Set, 0.1mm inc. Split Head from 3mm up

- HSS Drill Bit 6-10mm 41pcs Set, 0.1mm Inc. Split Head

- HSS Centre Drill Set 4pcs Set 1.6-4mm

- MT2 Revolving Centre

SIEG SC4/510 HiTorque Lathe Specificaitons

Brushless Motor with Torque Control
Cross & Longitudinal Power Feed
Extra Long 510mm Bed
Belt Drive for Quieter Operation
Cam- Lock Tailstock
Backlit Spindle Speed Readout
Advanced Touch Panel Control
T-Slots on Compound and Cross Slide
Variable Speed
Switched Chuck Guard
Leadscrew Guard
Cuts Metric & Imperial Threads
Emergency Stop Button
High Quality Cast Iron Bed
Metal Gears
Overload Protection

Specifications:

Swing Over Bed: 210mm

Distance Between Centres: 510mm

Spindle Bore: 20mm

Spindle Taper: MT3

Tailstock Taper: MT2

Cross Slide Travel: 100mm

Compound Travel: 70mm

Power Rating: 1250W

Output: 1000W

Range of Threads ( Metric ): 0.25-3.0mm ( 17 Thread Pitches )

Range of Threads ( Imperial ): 8-24TPI ( 10 Thread Pitches )

Spindle Speed: 100- 2000rpm

Overall Dimension ( mm ): 1010x630x400

Weight ( Net / Gross ): 98 / 125kg

Standard Accessories:

100mm 3-Jaw Self-Centering Chuck

MT2 Dead Centre

MT3 Spindle Centre

Change Gear Set

Wrench Set

Read SIEG SC4 HiTorque Lathe Review ( By: Frank J. Hoose )
