Item Details

Item Name

SIEG SC3/400 HiTorque Lathe Starter Pack

Item #

080-010-28100

Price/ea

$1,365.65

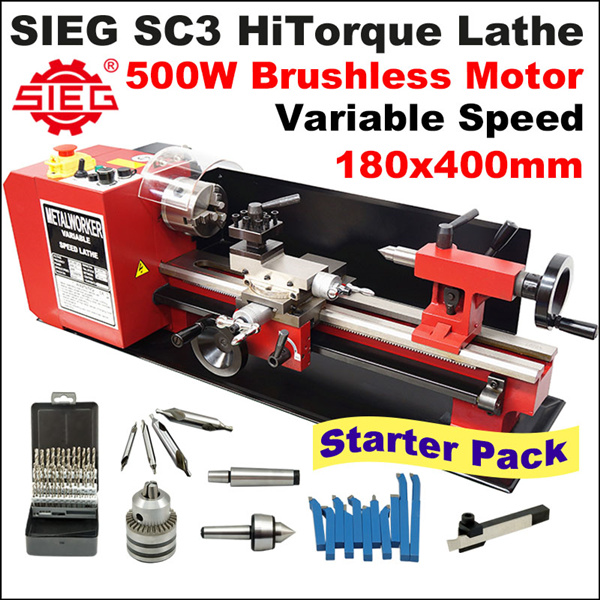

SIEG SC3 HiTorque Lathe Starter Pack

Includes:

- 8x8mm Carbide Tipped 11pcs Lathe Tool Set

- 8mm Parting Off Tool

- Key type Drill Chuck, B16 1-13mm

- MT2/B16 Drill Chuck Arbor

- HSS Drill Bit 1-10mm set 19pcs, 0.5mm inc. (Split Head from 3mm up)

- HSS Centre Drill Set 4pcs Set 1.6-4mm

- MT2 Revolving Centre

SIEG SC3 HiTorque Lathe Specifications

Features:

HiTorque Brushless Motor with Torque Control

Belt Drive for Quieter Operation

Cam-Lock Tailstock

Socket for Spindle Speed Display

4 Way Tool Post

Variable Speed

Switched Chuck Guard

Leadscrew Guard

Forward / Reverse Auto Feed

Overload Protection

Emergency Stop Button

High Quality Cast Iron Bed

Specification:

Swing Over Bed: 180mm

Distance Between Centres: 400mm

Spindle Bore: 20mm

Spindle Taper: MT3

Tailstock Taper: MT2

Cross Slide Travel: 65mm

Compound Slide Travel: 55mm

Power Rating: 610W

Output: 500W DC

Metric Range of Threads: 0.4-2.0mm ( 10 Thread Pitches )

Spindle Speed: 100-2500rpm

Overal Dimension: 900x420x390mm

Weight ( Net / Gross ): 50 / 55kg

Standard Accessories:

80mm 3-Jaw Self-Centering Chuck

MT2 Dead Centre

Metric Change Gear Set

Oil Tray

Wrench Set

Read SIEG SC2 / SC3 HiTorque Lathe Review ( By: Frank J. Hoose )

In Stock!

Quantity
