 SIEG C2/300 Mini Lathe Starter Pack
Item Details
Item Name
SIEG C2/300 Mini Lathe Starter Pack
Item #
080-010-20100
Price/ea
$1,019.15

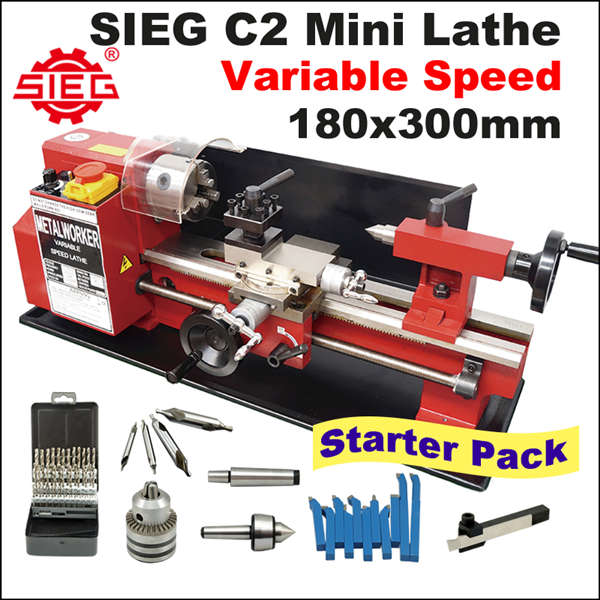

SIEG C2/300 Mini Lathe Starter Pack

Includes:
- 8x8mm Carbide Tipped 11pcs Lathe Tool Set
- 8mm Parting Off Tool
- Key type Drill Chuck, B16 1-13mm
- MT2/B16 Drill Chuck Arbor
- HSS Drill Bit 1-10mm set 19pcs, 0.5mm inc. (Split Head from 3mm up)
- HSS Centre Drill Set 4pcs Set 1.6-4mm
- MT2 Revolving Centre

SIEG C2/300 Mini Lathe Specifications:

Features:
4 Way Tool Post
Variable Speed
Switched Chuck Guard
High / Low Gear
Forward / Reverse Auto Feed
Overload Protection
Emergency Stop Button
High Quality Cast Iron Bed

Specification:
Swing Over Bed: 180mm
Distance Between Centres: 300mm
Spindle Bore: 20mm
Spindle Taper: MT3
Tailstock Taper: MT2
Cross Slide Travel: 65mm
Compound Slide Travel: 55mm
Power Rating: 400W
Output: 250W
Metric Range of Threads: 0.4-2.0mm ( 10 Thread Pitches )
Spindle Speed - High Gear: 100-2500rpm
            - Low Gear: 100-1100rpm
Overal Dimension: 700x300x300mm
Weight ( Net / Gross ): 37 / 40kg

Standard Accessories:
80mm 3-Jaw Self-Centering Chuck
MT2 Dead Centre
Metric Change Gear Set
Oil Tray
Wrench Set
Item Options
C2 DRO Kits
SIEG C2/C3 Digital Readout Conversion Kit (Add $177.65)
SIEG C2/C3 Tailstock DRO (Add $121.00)
C2 Machine Stand
Recommended Tool Sets
8mm HSS 6pc Internal Threading & Boring Set (Add $69.95)
TiN Carbide Indexable Boring Bar 3pc Set - 8mm (Add $79.75)
TiN Carbide Indexable ext & int Threading Tool 2pc Set-8mm (Add $125.95)
TiN Carbide Indexable ext & int Threading Tool 2pc Set-8mm (Add $125.95)
12mm Knurling Tool Holder with 0.8mm Diamond Knurling Wheel (Add $56.65)
C2 Accessories
C2/C3 Thread Chasing Dial - Metric (Add $25.00)
C2/C3 Metal Knob & Handwheel Set (Add $82.50)
C2/C3 Metric Metal Change Gear Set (Add $58.85)
C2/C3 Carriage Stop with Lever (Add $19.80)
C2/C3 Travelling Steady (Add $49.50)
C2/C3 50mm Extra Large Fixed Steady (Add $58.85)
C2/C3 Quick Change Tool Post with 3xTool Holders (Add $99.00)
SIEG C2/C3 Face Plate 160mm (Add $47.30)
MT2 Light Duty Revolving Centre (Add $48.95)
Item Price
Your Price
$1,019.15
In Stock!
Quantity
