 SIEG SX3L HiTorque Mill with MT3 Spindle
Item Details
SIEG SX3L HiTorque Mill with MT3 Spindle
Item Name
SIEG SX3L HiTorque Mill with MT3 Spindle
Item #
080-020-38000
Price/ea
$2,970.00

Product Image Gallery
SIEG SX3L HiTorque Mill with MT3 Spindle

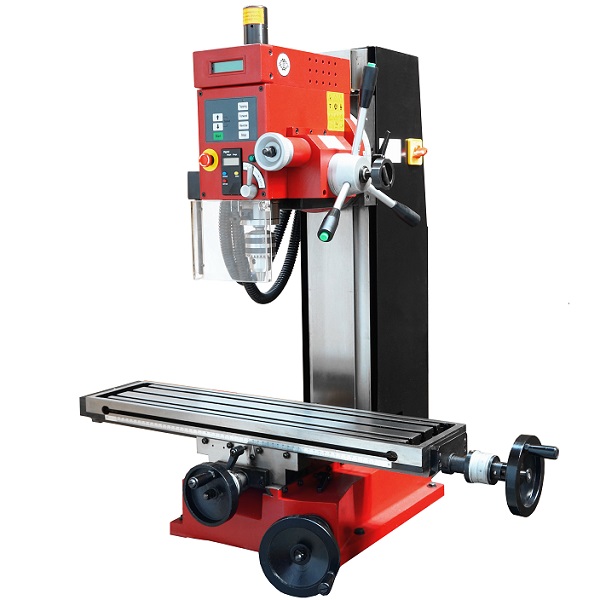

SIEG SX3L HiTorque Milling Machine

Feature:
HiTorque Brushless Motor with Torque Control
Super Quiet Toothed Belt Drive
700x160mm Extra Long Worktable
Digital Readout for Drilling Depth

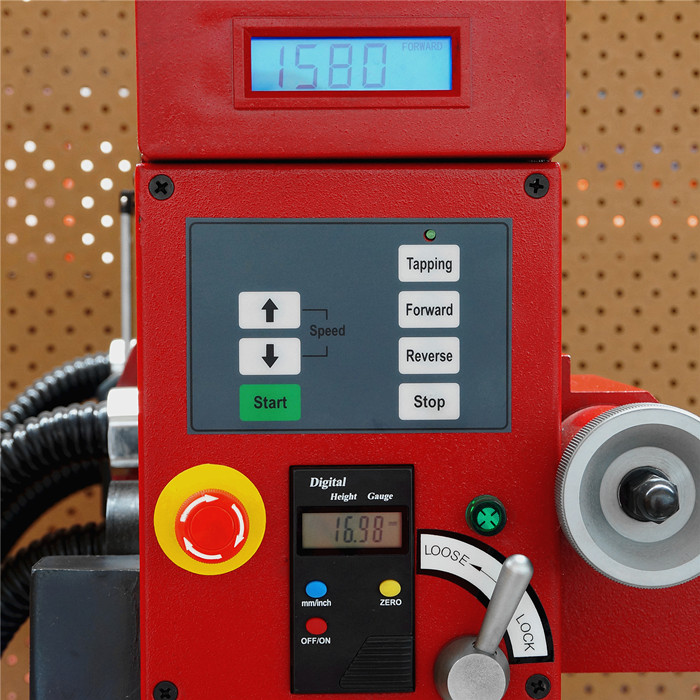

Backlit Spindle Speed Diksplay

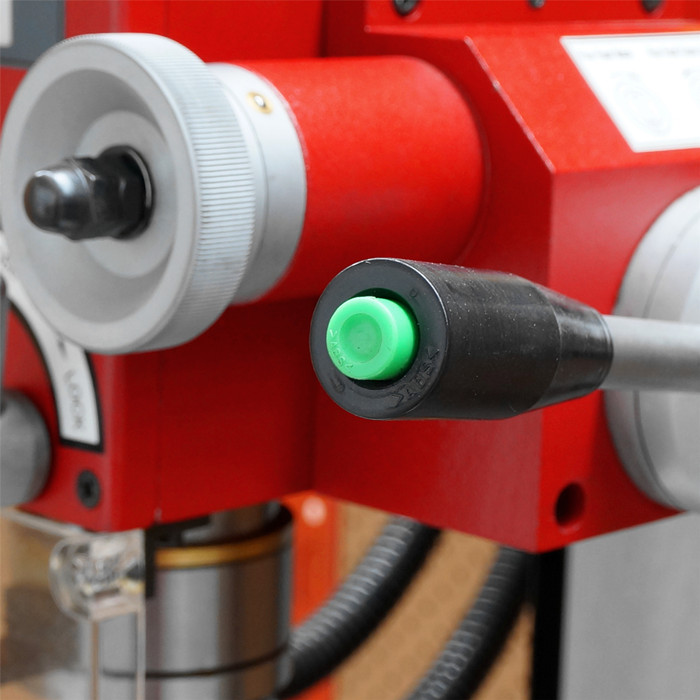

Tapping Mode
Forward / Reverse Button
Chuck Guard with Safety Switch
Fine Feed
Heavy Duty Cast Iron Base
Suitable for light industrial use

Specifications:
Drilling Capacity: 25mm
End Mill Capacity: 25mm
Face Mill Capacity: 50mm
Tapping Capacity: 12mm
Spindle Stroke: 72mm
Table Travel: 510x145mm ( X, Y )
Head Stock Travel: 300mm
Spindle Taper: MT3
Thoat: 230mm
Max. Spindle to Table: 380mm
Table Size: 700x160mm
Table Effective Size: 625x204mm
T-Slot Size: 12mm

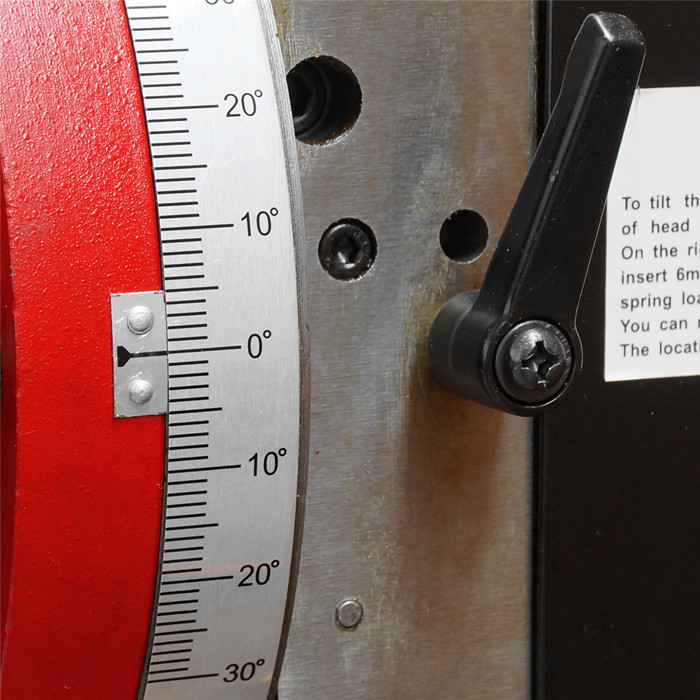

Headstock Tilt: ≤90°
Power Rating: 1250W
Output: 1000W
Spindle Speed: 100-1800rpm
Overall Dimension: 915x760x990
Weight （ Net/Gross ): 180 / 205kg

Standard Accessories:
Drill Chuck with Arbor
Drawbar
Wrench Set
