Item Details

Item Name

SIEG SX2P HiTorque Mill with MT3 Spindle

Item #

080-020-28000

Price/ea

$1,265.00

Product Image Gallery

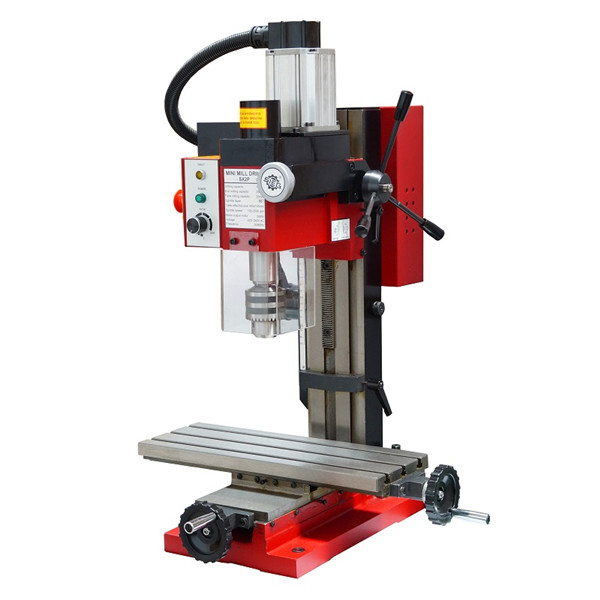

SIEG SX2P HiTorque Mill

Feature:

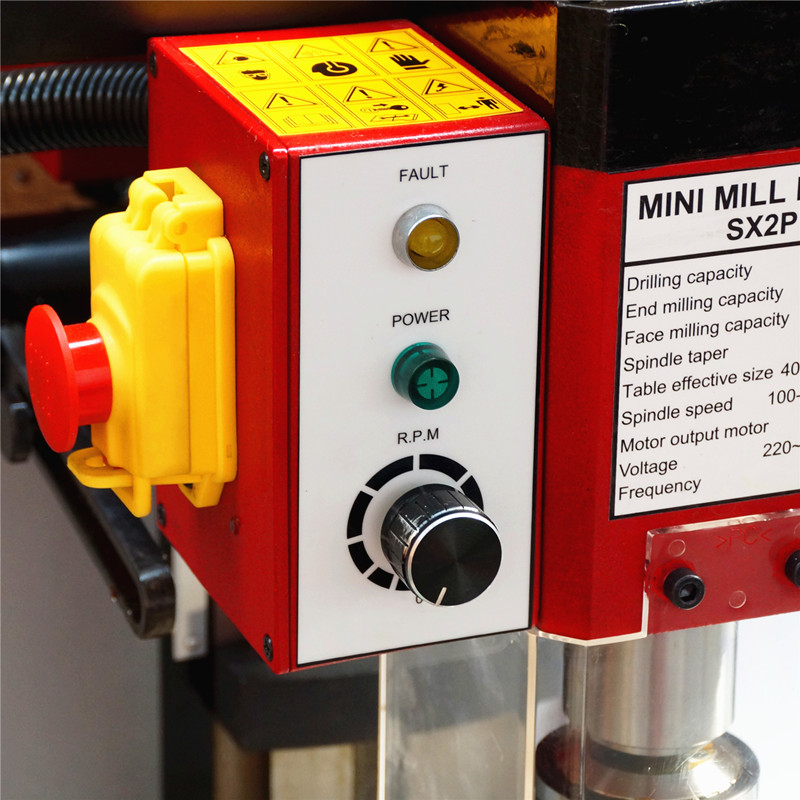

HiTorque Brushless Motor with Torque Control
Super Quiet Toothed Belt Drive
400x145mm Extra Wide Worktable
Chuck Guard with Safety Switch

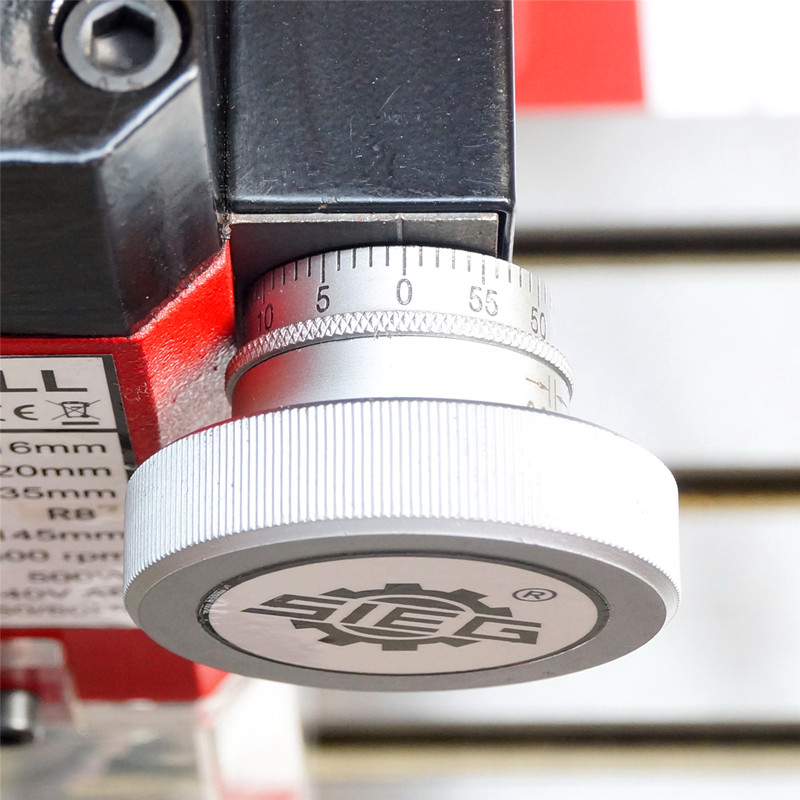

Fine Feed
Heavy Duty Cast Iron Base
Extra Rigid, Bigger Section Fixed Column Mounted Directly to the Base!!

Specifications:

Drilling Capacity: 16mm

End Mill Capacity: 20mm

Face Mill Capacity: 35mm

Table Travel: 300x140mm ( X, Y )

Head Stock Travel: 260mm

Spindle Taper: MT3

Thoat: 167mm

Max. Spindle to Table: 15-285mm

Table Size: 400x145mm

Table Effective Size: 400x145mm

T-Slot Size: 8mm

Power Rating: 610W

Output: 500W

Spindle Speed: 0-2500rpm

Overall Dimension: 520x580x760

Weight （ Net/Gross ): 58 / 75kg

Standard Accessories:

Drill Chuck with Arbor

Drawbar

Wrench Set
