 SIEG SX1L Mill
Item Details

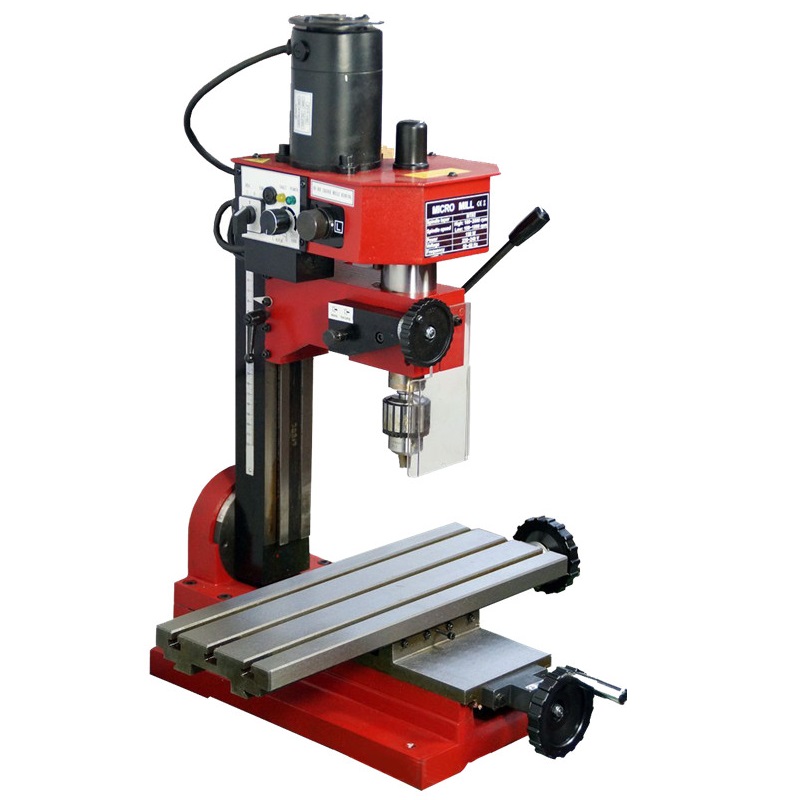

SIEG SX1L Mill
Item Name
SIEG SX1L Mill
Item #
080-020-16000
Price/ea
$797.50

Product Image Gallery
SIEG SX1L Mill
SIEG SX1L Mill

Features:

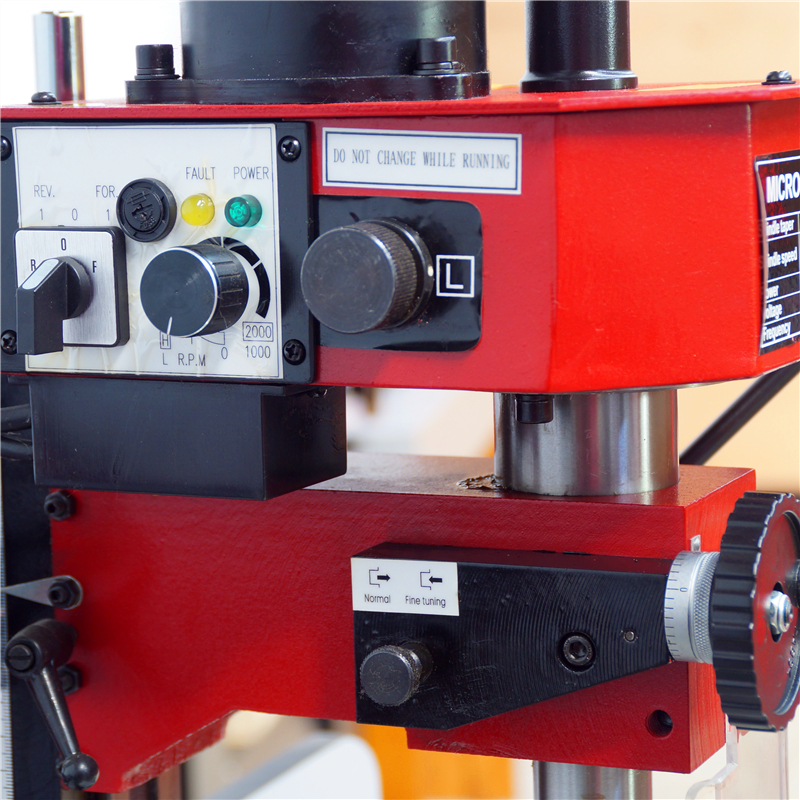

  • Overload Protection
  • Variable Speed
  • Chuck Guard
  • Industrial Grade Cast Iron Body
  • High / Low Gear
  • Forward / Reverse Switch
  • Adjustable Dovetail Slideways on all 3 axis
  • 400mm Long Table Exclusive to Ausee in Australia
Specicfications:
Drilling Capacity: 10mm
End Mill Capacity: 12mm
Face Mill Capacity: 16mm
Table Cross Travel: 145mm
Table Longitudinal Travel: 330mm
Headstock Travel: 220mm
Spindle Taper: MT2
Throat: 140mm
Spindle to Table Distance: 0-265mm
Spindle Stroke: 30mm
Table Size: 400x145mm
Table Effective Size: 400x145mm
T-Slot Size: 8mm (M6 T-Nuts)

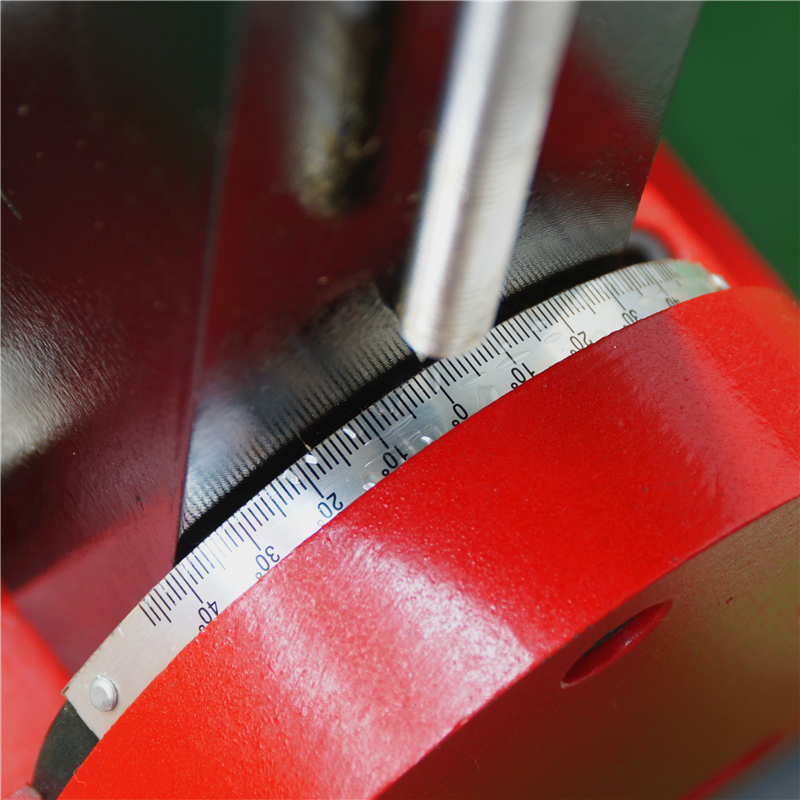

Max. Column Tilt: ≤45°
Power Rating: 250W
Output: 150W
Spindle Speed: 0-2000rpm(Hi) / 0-1000(Low)
Overall Dimension: 515x360x710mm
Weight (Net/Gross): 40/56kg


Standard Accessories:
Drill Chuck & Arbor
Drawbar
Wrench Set

Item Options
SX1L Machine Stand
Clamping Kit for SX1L
M6 58pcs Clamping Kit suits 8mm T-Slot (Add $104.50)
M6 58pcs Clamping Kit suits 8mm T-Slot (Add $104.50)
Milling Collet Chuck Set for SX1L
MT2 Collet Set 6,10,12mm (M10 Thread) (Add $39.50)
MT2 Collet Metric 9pc Set (M10 Thread) (Add $117.70)
ER20/MT2 Milling Collet Chuck (M10 Thread) (Add $70.95)
ER25/MT2 Milling Collet Chuck (M10 Thread) (Add $75.35)
ER16/MT2 Milling Collet Chuck (M10 Thread) (Add $70.95)
Rotary Table for SX1L
Dividing Plate for 100mm Rotary Table (Add $84.15)
Choose a vice for SX1L
Delux Precision Machine Vice 90mm (Add $119.90)
SIEG 100mm Quick Clamp Machine Vice (Add $85.25)
SIEG 50mm Quick Clamp Machine Vice (Add $55.00)
Type B Precision Tool Vice 80mm (Add $134.55)
Type B Precision Tool Vice 50mm (Add $69.99)
Quality Engineers Drill Vice 100mm (Add $55.00)
Item Price
Your Price
$797.50
In Stock!
Quantity


 Ausee Machine & Tools is an Australian registered machine tool dealer located in Crabourne West, Victoria. We are not only an official distributor of SIEG machinery but also keep a wide range of cutting tools, measuring tools and machine accessories.
